Description |

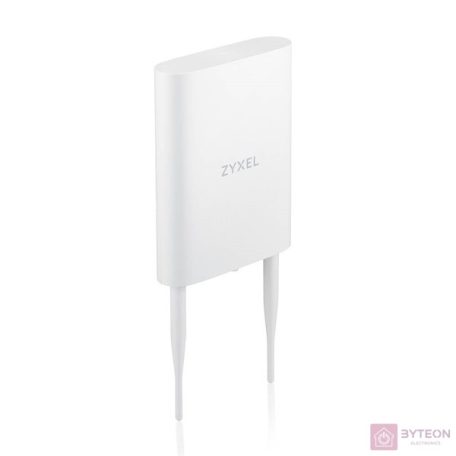

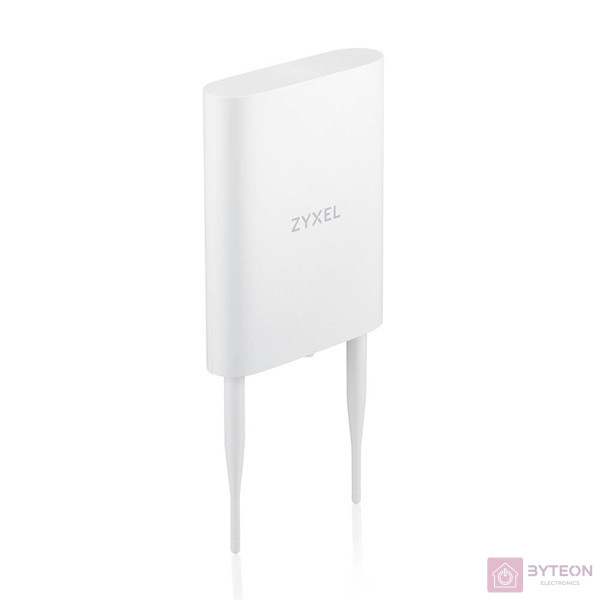

802.11ax (WiFi 6) Dual-Radio Outdoor PoE Access Point |
Wireless speed |
2.4GHz: 575 Mbps
5GHz: 1200 Mbps |
Frequency band |
2.4 GHz
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
|
Conducted typical transmit output power |
US (2.4GHz/5GHz): 23/26 dBm
EU (2.4GHz/5GHz): 20/25 dBm |
Antenna gain |
2.4GHz: 4 dBi
5GHz: 5 dBi |
Minimum Receive sensitivity |
Min. Rx sensitivity up to -99 dBm |
Encryption |
- WPA Personal
- WPA2 Personal
- WPA3 Personal
|
Access management |
- MAC filtering
- Rogue AP detection
|
ZON Utility |
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
|
Item |
Dimensions (WxDxH)(mm/in.)
308 x 136.4 x 49.6 /12.13 x 5.37 x 1.95
Weight (g/lb.)
580/1.28 |
Packing |
Dimensions (WxDxH)(mm/in.)
221 x 188 x 59 / 8.70 x 7.40 x 2.32
Weight (g/lb.)
887/1.96 |
Included accessories |
- PoE injector
- Mounting screws
|
Power |
PoE (802.3at): power draw 16 W |
Operating |
Temperature
-20°C to 60°C/ -4°F to 140°F
Humidity
10% to 90% (non-condensing) |
Storage |
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing) |
Radio |
- FCC Part 15C
- FCC Part 15E
- ETSI EN 300 328
- EN 301 893
- LP0002
- EN 60601-1-2
|
EMC |
- FCC Part 15B
- EN 301 489-1
- EN 301 489-17
- EN55022
- EN55024
- EN61000-3-2/-3
- BSMI CNS13438
|
Safety |
- EN 60950-1
- IEC 60950-1
- BSMI
- CNS14336-1
|
