Product name |
Description |

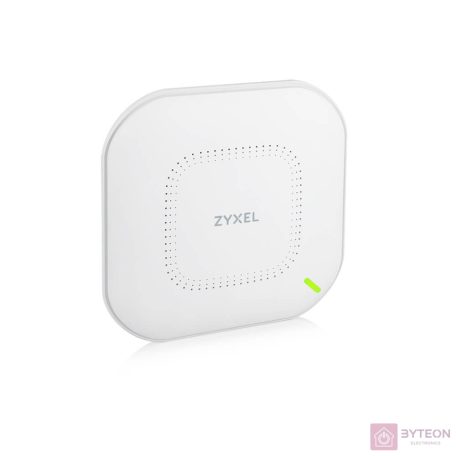

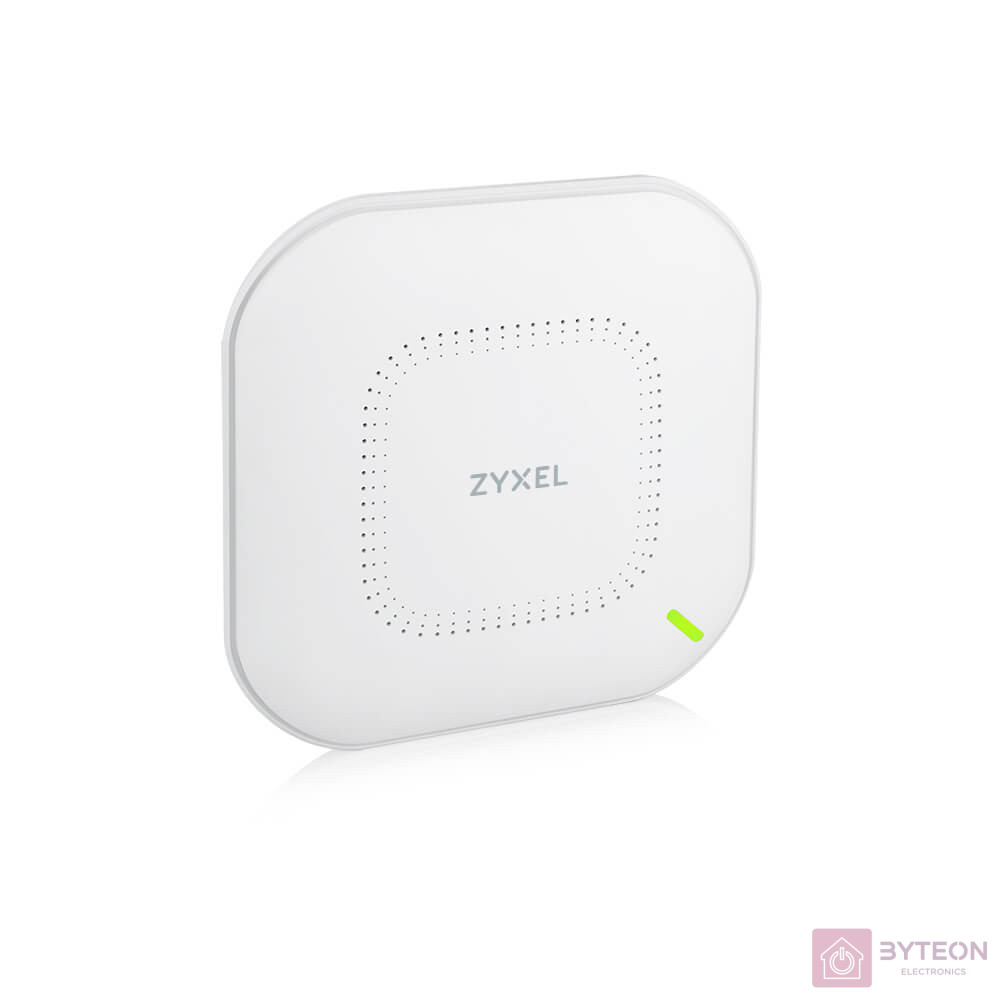

802.11ax (WiFi 6) Dual-Radio PoE Access Point |
Wireless |
Standard |
IEEE802.11 ax/ac/n/g/b/a |
MIMO |
MU-MIMO |
Wireless speed |
2.4GHz: 575Mbps
5GHz: 1200Mbps |
Frequency band |
2.4 GHz (IEEE 802.11 b/g/n)
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (IEEE 802.11 a/n/ac)
- USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
- European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
|
Bandwidth |
20-, 40- and 80-MHz |
Conducted typical transmit output power |
US (2.4GHz/5GHz): 23/23dBm
EU (2.4GHz/5GHz): 20/22dBm |
RF Design |
Antenna type |
2x2 MIMO optimized Antenna |
MTBF |
635,837 |
Antenna gain |
2.4GHz: Peak Gain 5dBi
5GHz: Peak Gain 6dBi |
Minimum Receive sensitivity |
Min. Rx sensitivity up to -101 dBm |
WLAN feature |
Band Steering |
Yes |
WDS/Mesh |
Yes (V6.10) |
Fast roaming |
Pre-authentication, PMK caching and 802.11r/k/v |
DCS |
Yes |
Load balancing |
Yes |
Security |
Wireless Security |
|
Authentication |
- WPA
- WPA2-Enterprise
- EAP
- IEEE 802.1X
- RADIUS authentication
|
Access management |
- L2-isolation
- MAC filtering
|
Networking |
IPv6 |
Yes |
VLANs |
Yes |
WMM |
Yes |
U-APSD |
Yes |
DiffServ marking |
Yes |
Management |
Operating mode |
- Nebula Cloud managed
- Standalone
|
ZON Utility |
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
|
Zyxel Wireless Optimizer |
- WiFi AP planning
- WiFi coverage detection
- Wireless health management
|
Web UI/ CLI |
Yes |
SNMP |
Yes |
Physical Specifications |
Item |
Dimensions (WxDxH)(mm/in.)
180 x 180 x 39 / 7.09 x 7.09 x 1.54
Weight (g/lb.)
453g/1 |
Packing |
Dimensions (WxDxH)(mm/in.)
229 x 216 x 64 / 9.02 x 8.5 x 2.52
Weight (g/lb.)
770g/1.7 |
Included accessories |
- Mount plate
- Mounting screws
- power adapter
|
Physical Interfaces |
Ethernet port |
|
Power |
- PoE (802.3)at: power draw 17 W
- DC input : 12 VDC 1.5A
|
Environmental Specifications |
Operating |
Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing) |
Storage |
Temperature
-30°C to 70°C/-22°F to 158°F
Humidity
10% to 90% (non-condensing) |
Certifications |
Radio |
- FCC Part 15C
- FCC Part 15E
- ETSI EN 300 328
- EN 301 893
- LP0002
|
EMC |
- FCC Part 15B
- EN 301 489-1
- EN 301 489-17
- EN55022
- EN55024
- EN61000-3-2/-3
- EN60601-1-2
- BSMI CNS13438
|
Safety |
- Safety EN 60950-1
- IEC 60950-1
- BSMI CNS14336-1
|
