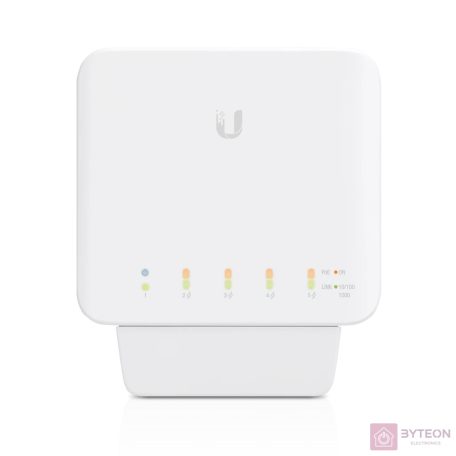

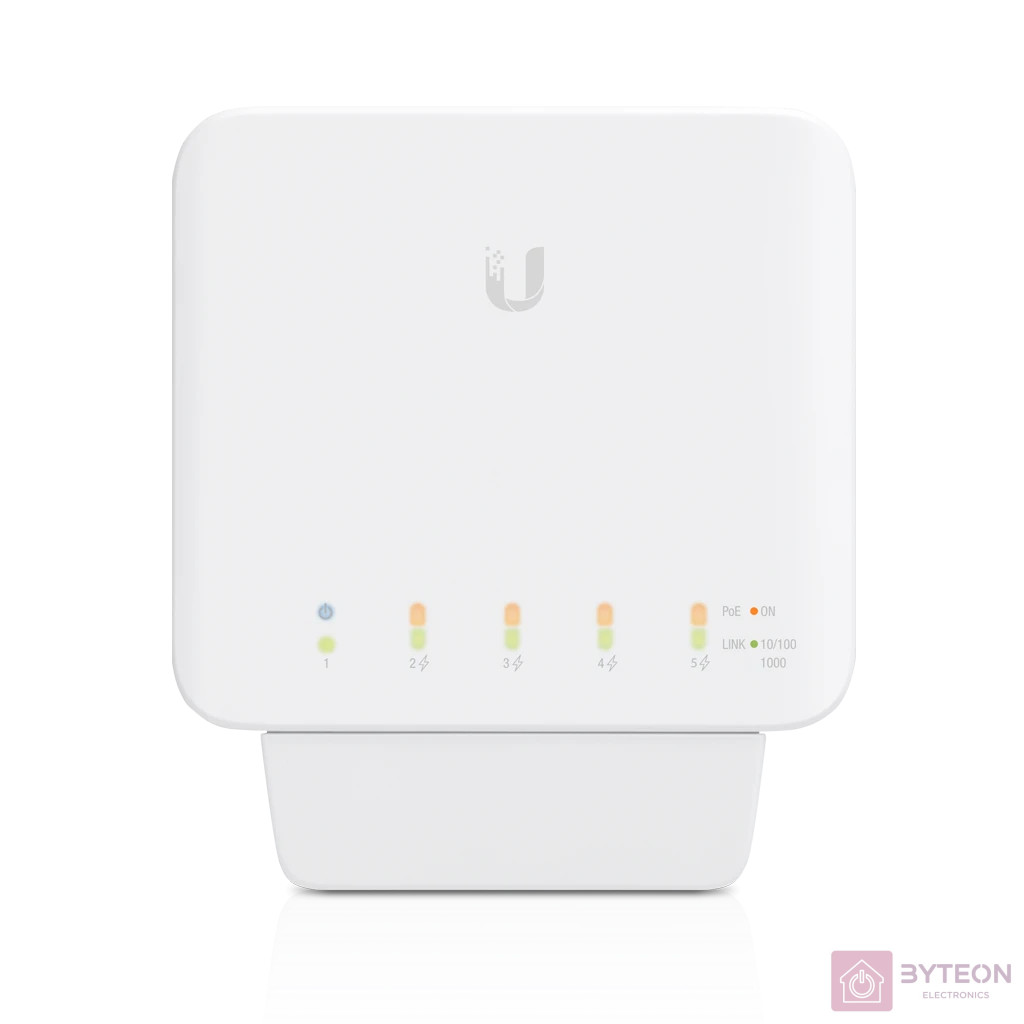

USW-Flex |
|---|
Dimensions |
122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10") |
Weight |
230 g (8.11 oz) |
Networking Interfaces |
(5) 10/100/1000 Mbps RJ45 Ports |
Management Interface |
Ethernet In-Band |
PoE Out (Ports 2-5) |
802.3at (Pins 1, 2+; 3, 6-) |
Max Power Consumption
(Excluding PoE Output) |
5W |
Max PoE Wattage Per Port |
25W |
Total PoE Power Budget
Powered by 802.3af
Powered by 802.3at
Powered by 802.3bt
Powered by PoE Adapter
(Enabled in Controller) |
8W
20W
46W
46W |
Voltage Range
802.3af
802.3at/bt |
44 - 57V
50 - 57V |
LEDs
System
RJ45 Data Ports |
Status
PoE; Link/Speed/Activity |
ESD/EMP Protection |
± 16kV Air, ± 16kV Contact |
Operating Temperature
46W PoE Output
25W PoE Output |
-40 to 55° C (-40 to 131° F)
-40 to 65° C (-40 to 149° F) |
Operating Humidity |
5 to 95% Noncondensing |
Certifications |
CE, FCC, IC |
Power Method (Port 1) |
|---|
PoE Type
802.3af/at (Pins 1, 2+; 3, 6-)
802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
50V/60W PoE Adapter* |
Recommended PoE Source
USW-24-PoE (sold separately)
USW-Pro-24-PoE (sold separately)
PoE Injector, POE-50-60W-WH or POE-50-60W (sold separately) |
USW-Flex-Utility** |
|---|
Dimensions (with Mount) |
249 x 218 x 60 mm (9.80 x 8.58 x 2.36") |
Weight (with Mount) |
740 g (26.10 oz) |
USW-Flex-Utility 60W PoE Adapter |
|---|
Dimensions |
118.5 x 63 x 34.7 mm
(4.66 x 2.48 x 1.36") |
Weight |
206 g
(7.27 oz) |
Output Voltage |
54V, 1.11A |
Rated Voltage |
100-240VAC |
Input Current |
1.5A (Max.) |
Efficiency |
> 86% |
Output Ripple |
200mVpp |
Line Regulation |
< 1% |
Load Regulation |
< 3% |
4-Pair Powering |
Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8- |
Operating Temperature |
-20 to 60 ° C (-4 to 140 ° F) |
Storage Temperature |
-30 to 70 ° C (-22 to 158 ° F) |
Operating Humidity |
5 to 90%, Noncondensing |
Surge Immunity |
4kV Difference and Common Mode |
* To enable PoE output power, select Power Source PoE Injector in UniFi Application.
** Accessory sold separately.
