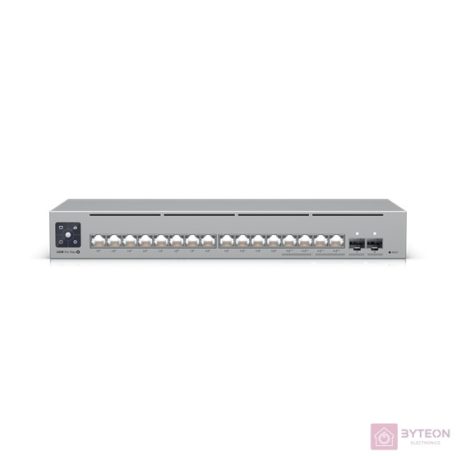

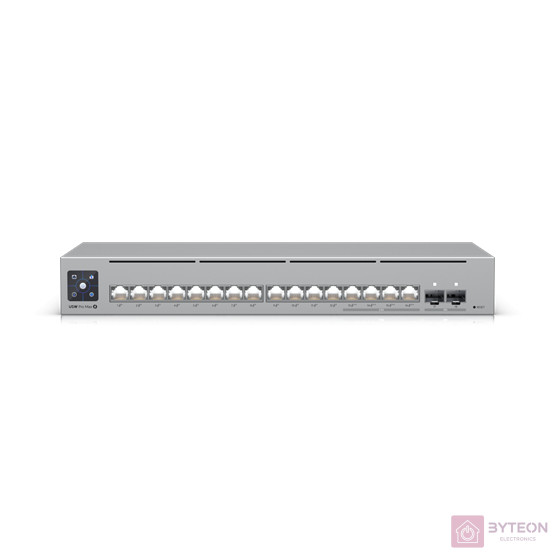

Ubiquiti USW-Pro-Max-16-PoE 12port GbE LAN PoE 4x2.5GbE Multi-Gigabit LAN PoE 2xSFP+ port L3 menedzselhető switch

Name: Ubiquiti USW-Pro-Max-16-PoE 12port GbE LAN PoE 4x2.5GbE Multi-Gigabit LAN PoE 2xSFP+ port L3 menedzselhető switch
Brand: Ubiquiti
Price: 196180 HUF
Availability: InStock

Gyártó :

Ubiquiti

Gyártói cikkszám :

USW-PRO-MAX-16-POE

Garancia :

12 hónap

További adatok

Raktáron

196 180 Ft

Külső raktár

1 db

Szállítás 1-3 munkanap

Részletek

Technical Specifications

Mechanical
Dimensions	325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight	2.1 kg (4.6 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports
PoE interface	(12) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput	42 Gbps
Switching capacity	84 Gbps
Forwarding rate	62.496 Mpps
Power method	DC adapter
Power supply	54V, 210W
Max. power consumption	30W (Excluding PoE output)
Total available PoE	180W
Max. PoE wattage per port by PSE	PoE: 15.4W PoE+: 30W PoE++: 60W
Voltage range PoE mode	PoE: 44—57V PoE+/PoE++: 50—57V
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Etherlighting™
Ethernet	Locating Speed/link Native VLAN/network
SFP+	Locating Speed/link Native VLAN/network
Application Requirements
UniFi Network	Version 8.1.127 and later

Adatok

Garancia (jogi személy)

Tömeg

1,95 kg/db
