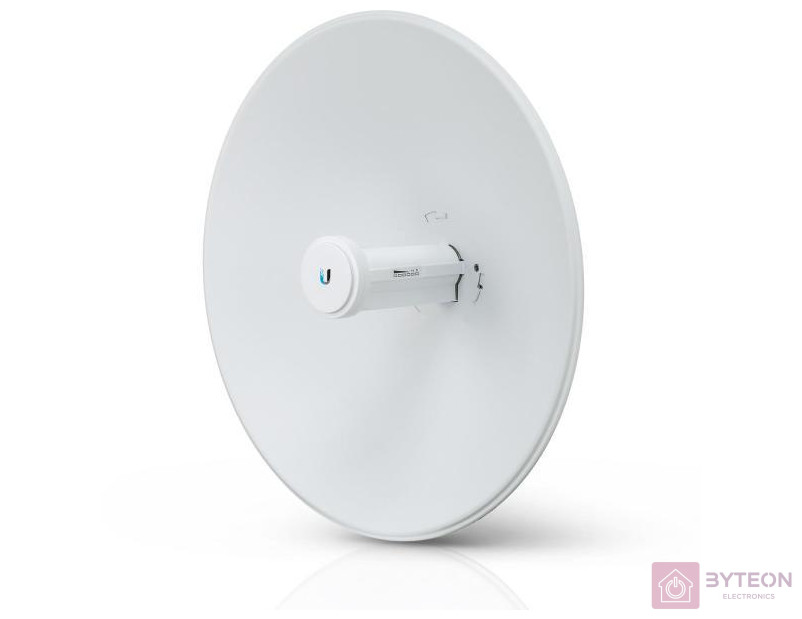

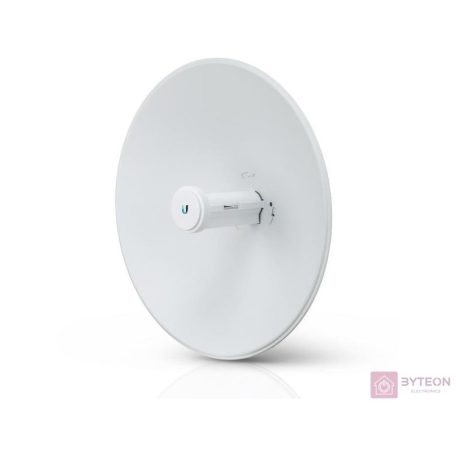

Ubiquiti PowerBeam 5AC Gen2 400mm 5GHz AirMAX AC Bridge, 2x25dBi, Gigabit LAN

Name: Ubiquiti PowerBeam 5AC Gen2 400mm 5GHz AirMAX AC Bridge, 2x25dBi, Gigabit LAN
Brand: Ubiquiti
Price: 56790 HUF
Availability: InStock

Gyártó :

Ubiquiti

Gyártói cikkszám :

PBE-5AC-GEN2

Garancia :

24 hónap

További adatok

Raktáron

56 790 Ft

Külső raktár

1 db

Szállítás 1-3 munkanap

Részletek

PBE-5AC-Gen2
Dimensions	420 x 420 x 230mm (16.54 x 16.54 x 9.06")
Weight	2.22 kg (4.89 lb)
Processor Specs	MIPS 74Kc
Memory	64 MB
LEDs	Power, Ethernet, (4) Signal Strength
Chanel Sizes PtP Modes PtMP Mode	10/20/30/40/50/60/80 MHz 10/20/30/40 MHz
Enclosure Characteristics Antenna Feed Dish Reflector	Outdoor UV Stabilized Plastic Powder-Coated SPCC
Gain	25 dBi
Networking Interface	(1) 10/100/1000 Ethernet Port
Processor Specs	MIPS 74Kc
Enclosure Characteristics	Antenna Feed: Outdoor UV Stabilized Plastic Dish Reflector: Powder-Coated SPCC
Max. Power Consumption	8.5W
Power Supply	24V, 0.5A Gigabit PoE Adapter (Included)
Power Method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range	20 to 26VDC
Wind Loading	380 N @ 200 km/h (85.4lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Certifications	CE, FCC, IC
Mounting	Pole-Mount (Kit Included)
Operating Temperature	-40 to 70 C (-40 to 158 F)
Operating Humidity	5 to 95% Noncondensing
RoHS Compliance	Yes
Salt Fog Test	IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test	IEC 68-2-6
Temperature Shock Test	IEC 68-2-14
UV Test	IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test	ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Operating Frequency (MHz)
Worldwide	5150-5875
USA U-NII-1 U-NII-2A U-NII-2C U-NII-3	5150-5250 5250-5350 5240-5725 5725-5850
Management Radio (MHz)
Worldwide	2412 - 2472
US/CA	2412 - 2462
