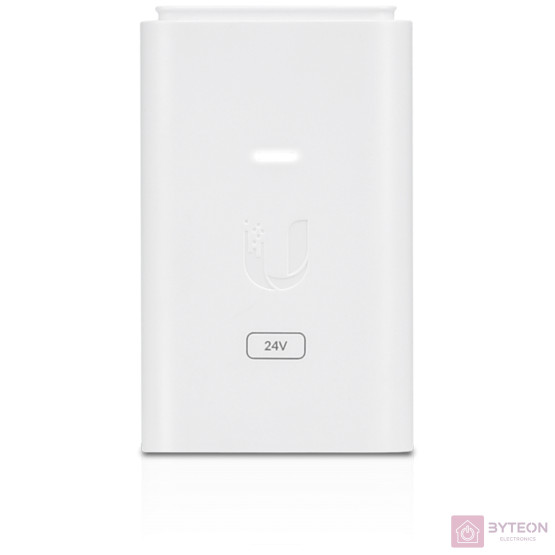

Ubiquiti Networks POE-24-7W-G-WH PoE adapter Gigabit Ethernet 24 V

3 870 Ft

Ubiquiti Networks POE-24-7W-G-WH PoE adapter Gigabit Ethernet 24 V

Ubiquiti Networks POE-24-7W-G-WH PoE adapter Gigabit Ethernet 24 V

Raktáron

3 870 Ft

Gyártó:

Ubiquiti

Gyártói cikkszám:

POE-24-7W-G-WH

Garancia:

12 hónap

Külső raktár

1 db

Szállítás 1-3 munkanap

POE-24-7W-G-WH
Dimensions	72 x 45 x 33 mm (2.84 x 1.75 x 1.33")
Weight	72.1g (2.54 oz)
Output Voltage	24VDC @ 0.3A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	Yes
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.3A @ 120VAC, 0.2A @240VAC
Inrush Current	<40A Peak @ 120VAC, <70A Peak @ 230VAC
Efficiency	80+%
Output Ripple	1% Max.
Switching Frequency	65 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering	–
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-30 to 70°C (-22 to 158°F)
Operating Humidity	35 to 95% Non-Condensing
AC Connector	IEC-320 C6
Data IN / POE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 μs) Power
Peak Pulse Current	36A (10/1000 μs) Data
Shunt Capacitance	<5 pf data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL

Garancia (jogi személy):

12

Tömeg:

230 g/db
