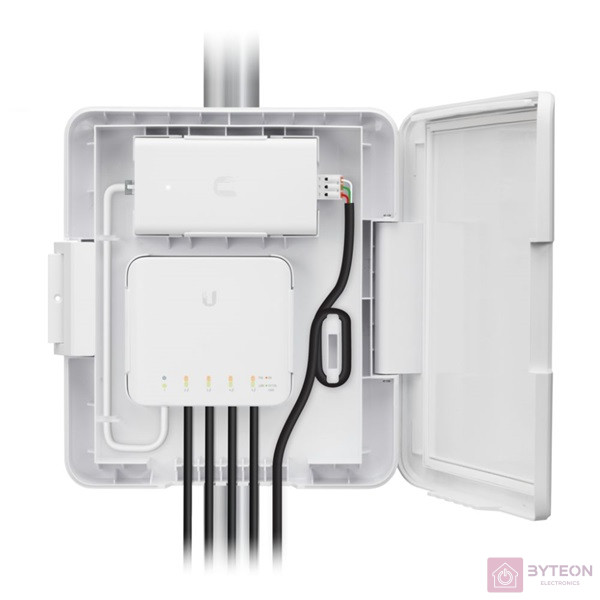

USW-Flex-Utility |
|---|
Dimensions (with Mount) |
249 x 218 x 60 mm (9.80 x 8.58 x 2.36") |
Weight (with Mount) |
740 g (26.10 oz) |
USW-Flex-Utility 60W PoE Adapter |
|---|
Dimensions |
118.5 x 63 x 34.7 mm
(4.66 x 2.48 x 1.36") |
Weight |
206 g
(7.27 oz) |
Output Voltage |
54V, 1.11A |
Rated Voltage |
100-240VAC |
Input Current |
1.5A (Max.) |
Efficiency |
> 86% |
Output Ripple |
200mVpp |
Line Regulation |
< 1% |
Load Regulation |
< 3% |
4-Pair Powering |
Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8- |
Operating Temperature |
-20 to 60 ° C (-4 to 140 ° F) |
Storage Temperature |
-30 to 70 ° C (-22 to 158 ° F) |
Operating Humidity |
5 to 90%, Noncondensing |
Surge Immunity |
4kV Difference and Common Mode |
* To enable PoE output power, select Power Source PoE Injector in UniFi Application.
