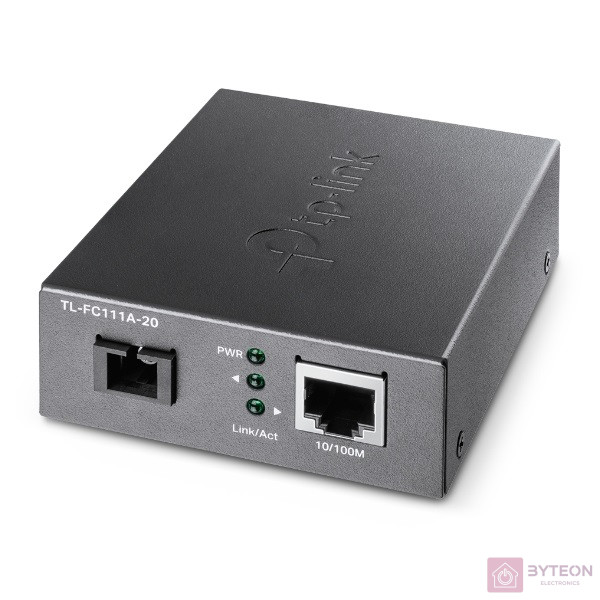

TP-Link TL-FC111A-20 10/100Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter

Csomagajánlatok

• Részletek
• Adatok

Részletek

NETWORK
Standards and Protocols	IEEE802.3, IEEE802.3i, IEEE802.3u

ENVIRONMENT
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing

HARDWARE FEATURES
Network Media	100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
Power Supply	External Power Adapter: 5 V/0.6 A
LED	PWR, Link/Act
Dimensions ( W x D x H )	94.5*73*27 mm
Wave Length	1550 nm TX, 1310 nm RX

ANTENNA
Connector Type	1 SC fiber optic, 1 RJ45 jack

MEDIA CONVERTER & MODULE
Standards and Protocols	IEEE 802.3, IEEE 802.3i, IEEE802.3u
Basic Function	Auto-negotiation of half-duplex / full-duplex transfer mode Full-duplex flow control (IEEE 802.3x) Half-duplex flow control (Backpressure) Extends fiber distance up to 20km (12.4 miles)
Ports	1x 100M single SC/UPC port 1x 10/100M RJ45 port (Auto MDI/MDIX)
WDM TX	1550 nm
WDM RX	1310 nm
Network Media 10BASE-T	UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T	UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX	Single-mode fiber
LED Indicators	PWR, Link/Act
Dimensions (W*D*H)	3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm)
Power Supply	External Power Adapter: 5 V/0.6 A
Safety & Emission	FCC, CE, RoHS
Fiber Type	9/125 μm single-mode fber (≤20 km)
Environment	Operating Temperature: 0?~50? (32?~122?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Adatok

Garancia (jogi személy):

60

Tömeg:

360 g/db
