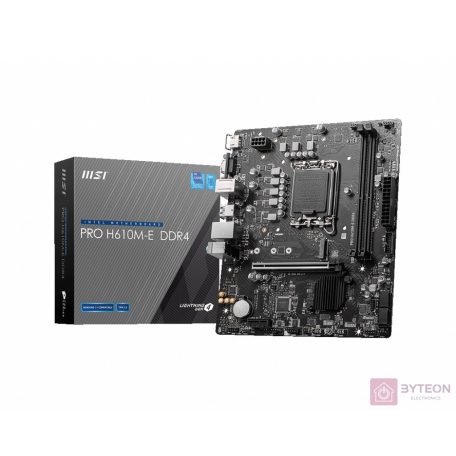

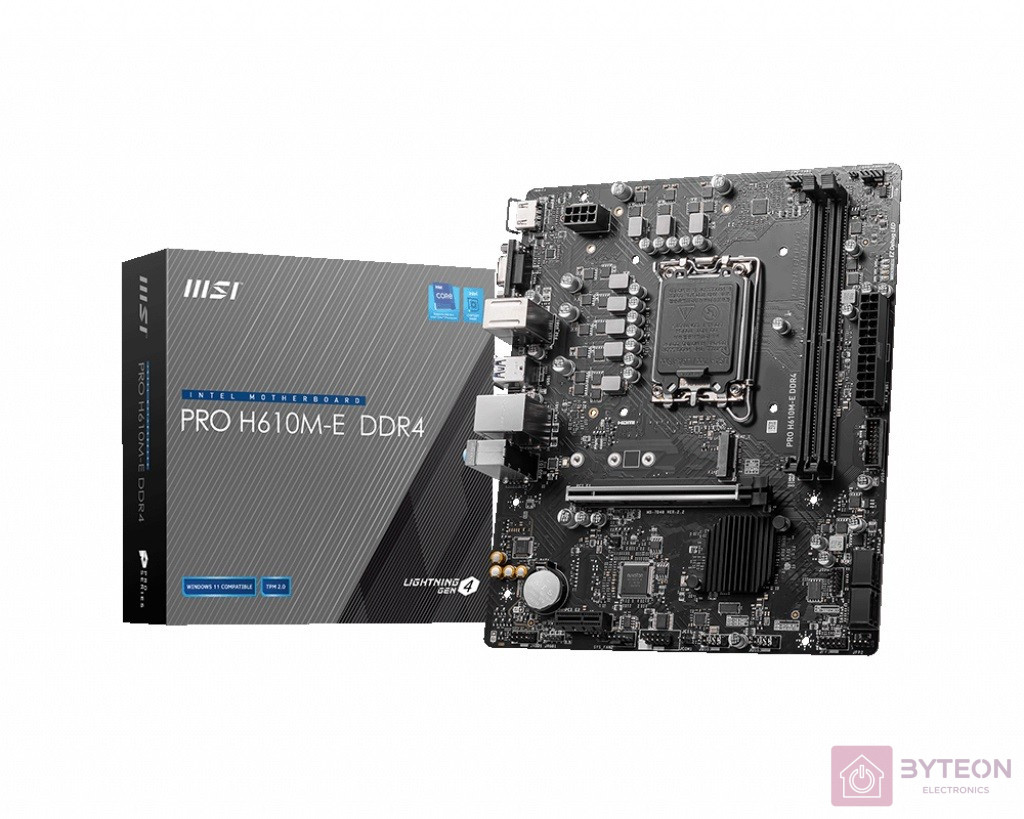

PRO H610M-E DDR4 INTEL MB LGA1700 MATX

PROCESSOR

• Supports 12th/ 13th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors ¹


• Processor socket LGA1700

1. Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

CHIPSET

Intel^® H610 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB ¹


• Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)


• Supports Dual-Channel mode


• Supports non-ECC, un-buffered memory

1. Please refer to www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

• 1x PCIe x16 slot (From CPU)



  • Supports up to PCIe 4.0 x16






• 1x PCIe x1 slot (From H610 chipset)



  • Supports PCIe 3.0 x1





ONBOARD GRAPHICS

• 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz ¹ / ²


• 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz ¹ / ²



  1. Available only on processors featuring integrated graphics.


  2. Graphics specifications may vary depending on the CPU installed.





SATA PORTS

• 4x SATA 6Gb/s ports (From H610 chipset)

M.2 SSD SLOT

• 1x M.2 slot (Key M) (from CPU)



  • Supports up to PCIe 3.0 x4


  • Supports 2242/ 2260/ 2280 storage devices





AUDIO

Realtek^® ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek^® RTL8111H 1Gbps LAN controller

POWER CONNECTORS

• 1x 24-pin ATX main power connector


• 1x 8-pin +12V power connector

INTERNAL USB CONNECTORS

• 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)



  • Supports additional 2 USB 3.2 Gen 1 5Gbps ports






• 2x USB 2.0 Type-A connectors (From Hub-GL850G)



  • Supports additional 4 USB 2.0 ports





FAN CONNECTORS

• 1x 4-pin CPU fan connector


• 2x 4-pin system fan connectors

SYSTEM CONNECTORS

• 1x Front panel audio connector


• 2x System panel connectors


• 1x Chassis Intrusion connector


• 1x TPM module connector


• 1x Serial port connector
