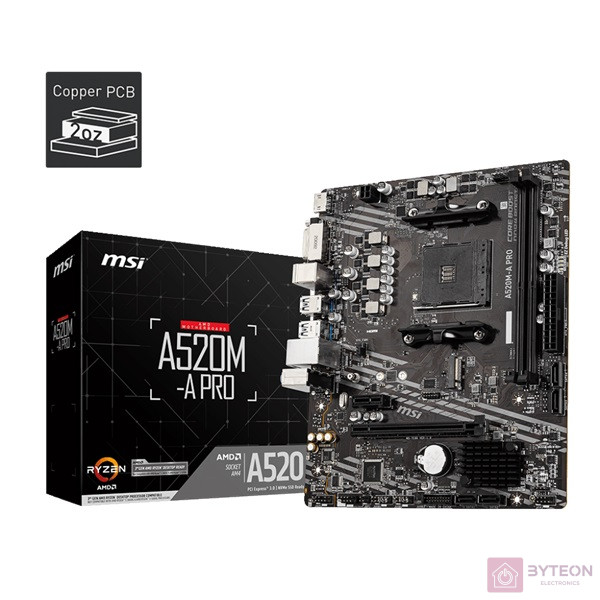

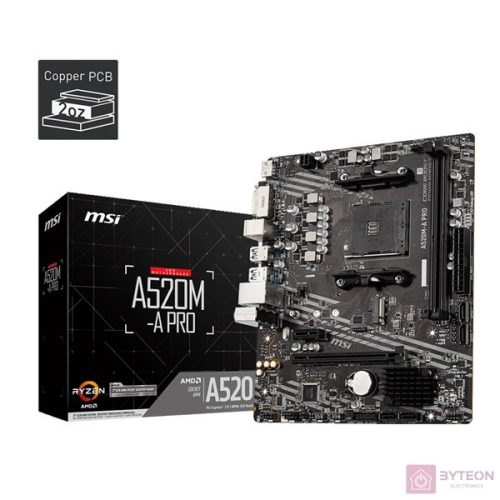

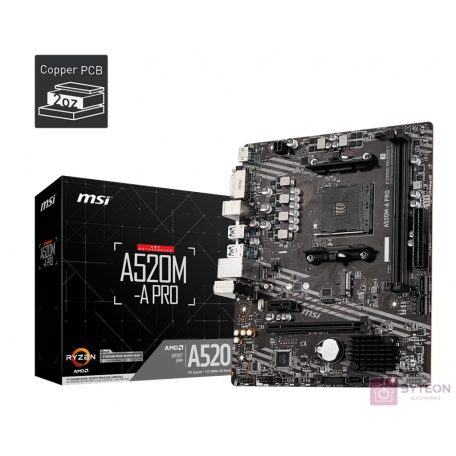

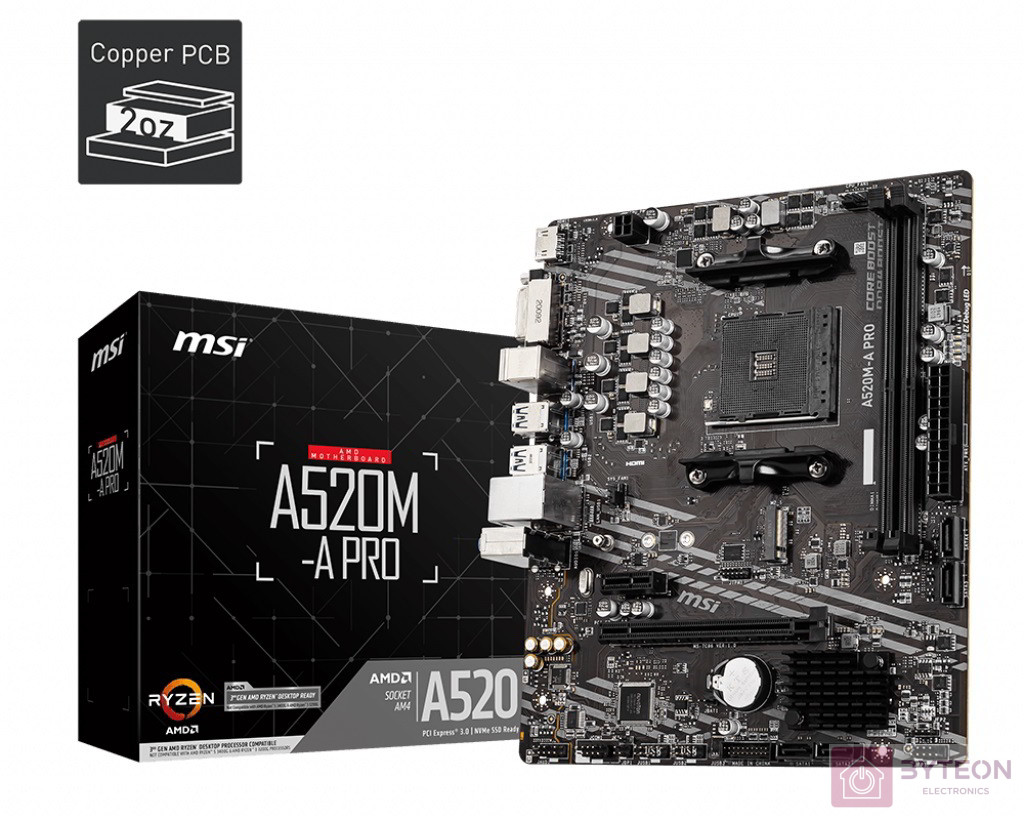

MSI A520M-A Pro (AM4)

CPU

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors

See supported processors

CHIPSET

AMD A520 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB ¹




  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC


  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE



    • 1DPC 1R max speed 4600 MHz


    • 1DPC 2R max speed 3866 MHz










• Dual channel memory architecture


• Supports non-ECC UDIMM memory


• Supports ECC UDIMM memory (non-ECC mode)


• Supports un-buffered memory

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

• 1x PCIe 3.0 x16 slot (from AMD processor)¹




  • Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors


  • Supports x8 speed with Ryzen™ 3000G processors


  • Supports x4 speed with AMD^® Athlon™ with Radeon Graphics processors






• 1x PCIe 3.0 x1 slot

1. The supported specification depends on installed processor.

ONBOARD GRAPHICS

• 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz¹²

  Support HDCP 1.4 & 2.3


• 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz¹


• Maximum shared memory of 16 GB

1. Available for the processor with integrated graphics.


2. Graphics specifications may vary depending on the CPU installed.

STORAGE

AMD A520 Chipset

• 4x SATA 6Gb/s ports


• 1x M.2 slot (Key M) (from AMD Processor)



  • Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors


  • Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors


  • Supports 2242/ 2260/ 2280 storage devices





RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices


• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD A520 Chipset

• 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector


• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

• 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek^® ALC892/ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek^® RTL8111H Gigabit LAN controller
