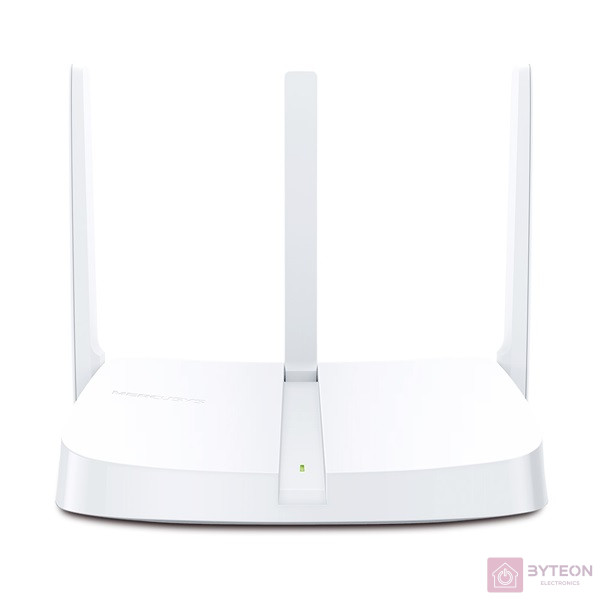

MERCUSYS WIRELESS ROUTER N 300MBPS MULTI-MODE

IEEE 802.11 b/g/n

2.4-2.5 GHz

• 11n: Up to 300Mbps (Dynamic)

• 11g: Up to 54Mbps (Dynamic)

• 11b: Up to 11Mbps (Dynamic)

• 270M: -70dBm@10% PER • 11M: -87dBm@10% PER

• 130M: -72dBm@10% PER • 6 M: -92dBm@10% PER

• 54M: -74dBm@10% PER • 1 M: -94dBm@10% PER

<20dBm (EIRP)

WPA-PSK/WPA2-PSK

Enable/Disable Wireless Radio, WDS Bridging

Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Access Control

Local Management

Remote Management

DHCP Server, DHCP Client List

Virtual Server, UPnP, DMZ

IP and MAC Address Binding

2.4GHz Guest Network

5.8 × 4.5 × 1.3 in (147 × 115 × 34 mm)

RESET/WPS Button

5V/0.6A

3* Fixed Antennas

1* 10/100Mbps WAN Port,

3* 10/100Mbps LAN Ports

Wi-Fi N Router (MW306R)

Power Adapter

Quick Installation Guide

Ethernet Cable

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Operating Humidity: 10%~90% Non-Condensing
