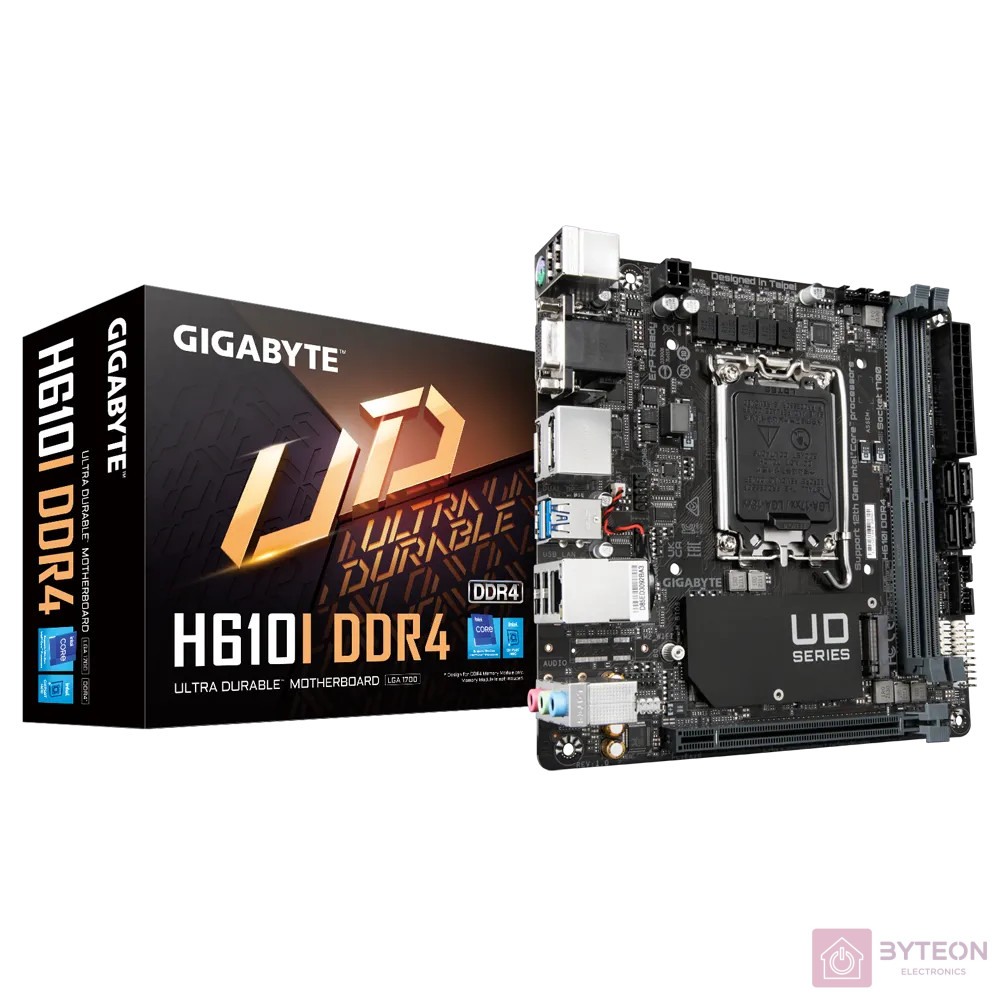

Gigabyte H610I DDR4 (1700)

CPU

1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*


2. L3 cache varies with CPU

Chipset

1. Intel^® H610 Express Chipset

Memory

1. Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules


2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory


3. Dual channel memory architecture


4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)


5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules


6. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz


2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version and HDCP 2.3.

   ** Support native HDMI 2.1 TMDS compatible ports


3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

   * Support for DisplayPort 1.2 version and HDCP 2.3.


4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

   * Support for DisplayPort 1.2 version.

Audio

1. Realtek^® Audio CODEC


2. High Definition Audio


3. 2/4/5.1/7.1-channel

   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN

1. Intel^® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16

   (The PCIEX16 slot conforms to PCI Express 4.0 standard.)

Storage Interface

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)


2. 4 x SATA 6Gb/s connectors

USB

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)


2. 4 x USB 2.0/1.1 ports on the back panel

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector


2. 1 x 4-pin ATX 12V power connector


3. 1 x CPU fan header


4. 2 x system fan headers


5. 1 x RGB LED strip header


6. 1 x M.2 Socket 3 connector


7. 4 x SATA 6Gb/s connectors


8. 1 x front panel header


9. 1 x front panel audio header


10. 1 x USB 3.2 Gen 1 header


11. 2 x USB 2.0/1.1 headers


12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)


13. 2 x serial port headers


14. 1 x Clear CMOS jumper


15. 1 x chassis intrusion header

Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port


2. 2 x USB 3.2 Gen 1 ports


3. 4 x USB 2.0/1.1 ports


4. 1 x D-Sub port


5. 2 x DisplayPorts


6. 1 x HDMI 2.0 port


7. 1 x RJ-45 port


8. 3 x audio jacks

I/O Controller

1. iTE^® I/O Controller Chip

H/W Monitoring

1. Voltage detection


2. Temperature detection


3. Fan speed detection


4. Fan fail warning


5. Fan speed control

   * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1. 1 x 256 Mbit flash


2. Use of licensed AMI UEFI BIOS


3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center

   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

   @BIOS

   EasyTune

   Ambient LED

   Smart Backup

   System Information Viewer


2. Support for Q-Flash


3. Support for Xpress Install

Bundled Software

1. Norton^® Internet Security (OEM version)


2. LAN bandwidth management software

Operating System

1. Support for Windows 11 64-bit


2. Support for Windows 10 64-bit

Form Factor

1. Mini-ITX Form Factor; 17.0cm x 17.0cm
