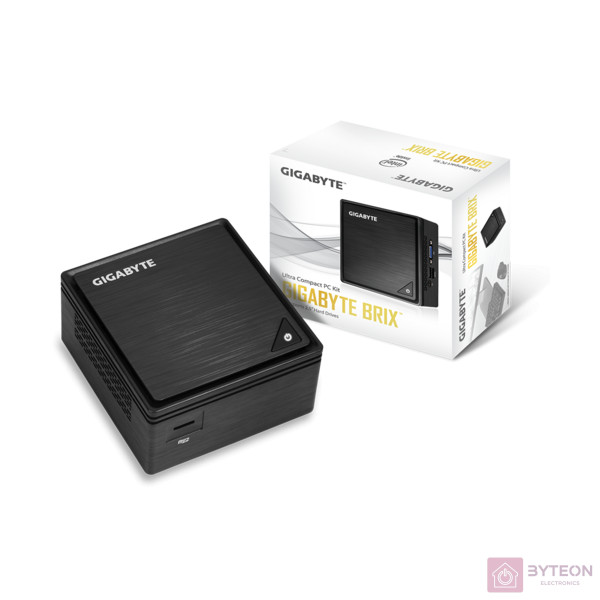

Gigabyte Brix GB-BPCE-3455 [J3455]

Dimension

56.1 mm x 107.6 mm x 114.4 mm (2.21" x 4.24" x 4.5")

Motherboard Size

100 x 105 mm

CPU

Intel^® Celeron^® Processor J3455, 2.3GHz, 4 core (TDP 10W)

Memory

2 x SO-DIMM DDR3L slots (DDR3 1.35V)

1333/1600/1866 MHz

Max. 16GB

LAN

Gigabit LAN (Realtek RTL8111HS)

Wifi Card

Intel^® Dual Band Wireless-AC 3168

Graphics

Intel^® HD Graphics 500

Audio

Realtek ALC255

VGA Resolution (Max.)

1920 x 1200 @60 Hz

HDMI Resolution (Max.)

4096 x 2160 @60 Hz

Storage

Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)

Expansion Slots

1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

Front I/O

1 x Micro SD card slot

Rear I/O

1 x HDMI (2.0)

2 x USB 3.0

1 x RJ45

1 x DC-In

1 x Kensington lock slot

Side I/O

1 x VGA

1 x Headphone/ Microphone jack

2 x USB 3.0

Power Supply

Input: AC 100-240V

Output: DC 19V

2.1A

VESA

Bracket included

Supports 75 x 75 and 100 x 100 mm

Support OS

WIN10 64bit

Environment

System Environment Operating Temperature: 0°C to +35°C

System Storage Temperature: -20°C to +60°C
