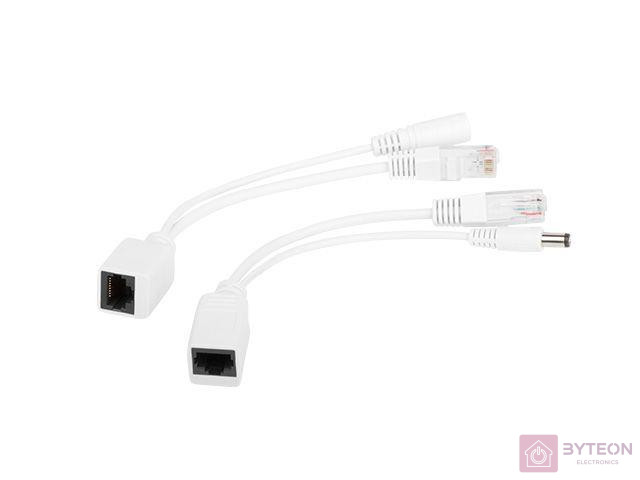

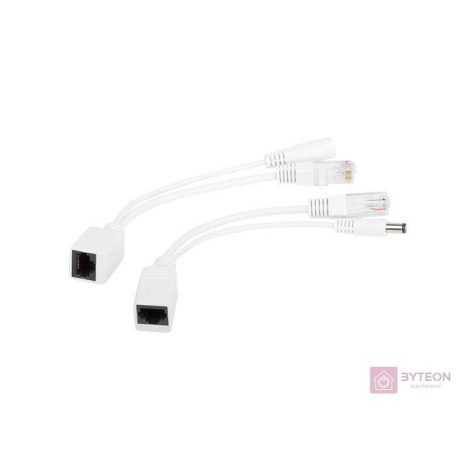

Gembird UTP passive PoE adapter Kit

Csomagajánlatok

• Részletek
• Adatok

Részletek

Perfect for use with IP-cameras Transfers power and data over single Ethernet cable Plug and Play: no installation or configuration required This passive Power over Ethernet injector + splitter adapter kit is an ideal solution to supply e.g. your IP Camera with power and data without adding an extra cable. This kit contains 2 adapters which manage the power and data transfer over only one single network cable. This very useful when you do not have a power socket anywhere near your IP camera. The PoE injector cable combines power and data onto the network cable and the PoE splitter cable converts the signal back to separate power and data for your IP Camera.   DC power connectors: outer diameter 5.5 mm x internal diameter 2.1 mm
Material: AWG24 pure copper
Outer diameter cable: 5.3 mm ???
Pinout:
1 --- 1
2 --- 2
3 --- 3
6 --- 6
4,5 --- 4,5 (V+)
7,8 --- 7,8 (V-)





Adatok

Garancia (jogi személy):

24

Tömeg:

55 g/db
