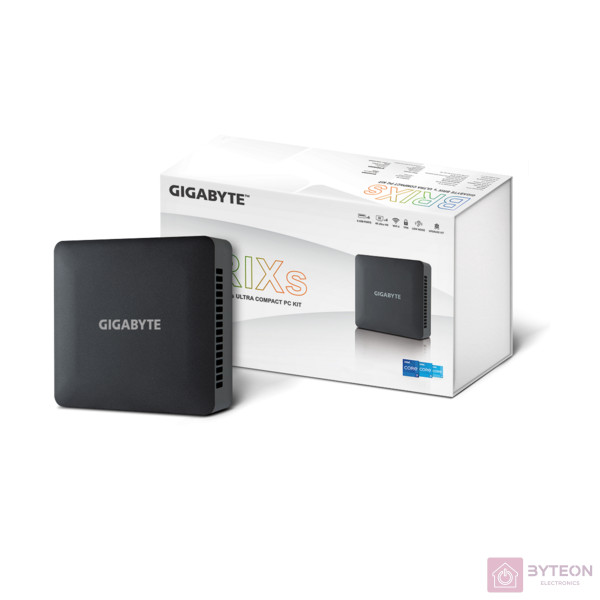

GIGABYTE PC BRIX, Intel Core i7 1355U 5GHz, 2xHDMI, Displayport (Type C), LAN, WIFI, BT, 2.5" HDD hely, 6xUSB

Dimension

124 x 120 x 49.7 mm

CPU

13th Gen Intel® Core™ i7-1355U Processor

10 Cores (2P+8E), 12 Threads, 12MB Cache

Frequency up to 5.0GHz(P Core Turbo), 15W

Memory

2 x SO-DIMM DDR4 slot

3200MHz

Max. 64GB

LAN

2.5 GbE LAN (Intel i226V)

Wifi Card

Intel AX203

Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2

Graphics

Intel® Iris® Xe Graphics, 96EU, 1.3GHz

Audio

Realtek ALC269 HD audio

Video

2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840x2160@60Hz

2 x Type-C, supports DP1.4a, Max Resolution 3840x2160@60Hz

Storage

1 x M.2 2280 slot for SSD (PCI-e Gen4 x4 / SATA3)

1 x 2.5” slot for HDD/SSD (9.0mm thick; SATA3)

Front I/O

1 x Headphone / Microphone

2 x USB3.2 Gen2 Type-A

2 x USB2.0 Type-A

1 x Power Button

Rear I/O

1 x 2.5 GbE RJ45

2 x HDMI 2.1

2 x USB3.2 Gen2 Type-C with DP alt Mode

1 x Kensington Lock Slot

1 x DC-In

Power Supply

Input: AC 100-240V

Output: DC 19.5V / 6.92A, 135W

VESA

VESA support

Supports 75 x 75 and 100 x 100 mm

*VESA Bracket to be purchased seperately.

Support OS

Win11 64 bit

Win10 64 bit

Environment

System Environment Operating Temperature: 0°C to +35°C

System Storage Temperature: -20°C to +60°C
