Description

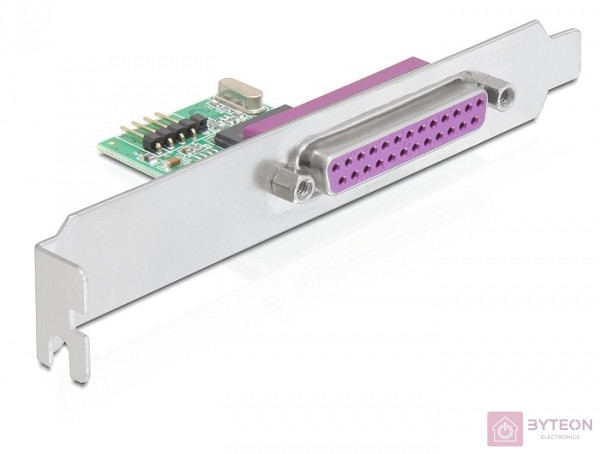

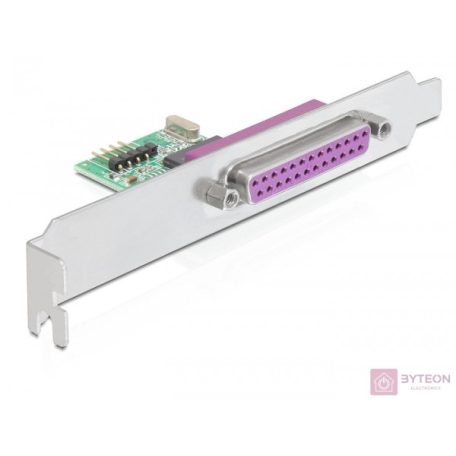

This Delock slot bracket can be installed into a free slot of your PC and can be connected to an internal USB interface. It expand your system by one external parallel port.
Specification
• Chipset: Prolific PL-2305H
• Connector: external: 1 x parallel DB25 female with screw nuts
internal: 1 x 4 pin USB pin header
• Data transfer rate up to 1.5 Mb/s
• IEEE 1284 standard
• Fully automatic, high speed bi-directional parallel port
• 512 bytes dynamically allocated unified data buffer for upstream and
downstream data transfer
• Operating temperature: -10 °C ~ 80 °C
• Storage temperature: -20 °C ~ 100 °C
System requirements
• Windows XP/Vista/7/7-64, Linux ex Kernel 2.6
• PC with a free PC slot
• One free internal 4 pin USB pin header
Package content
• Slot bracket USB > parallel
• USB pin header cable 4 pin to 4 pin
• Driver CD
• User manual
Package
• Box
