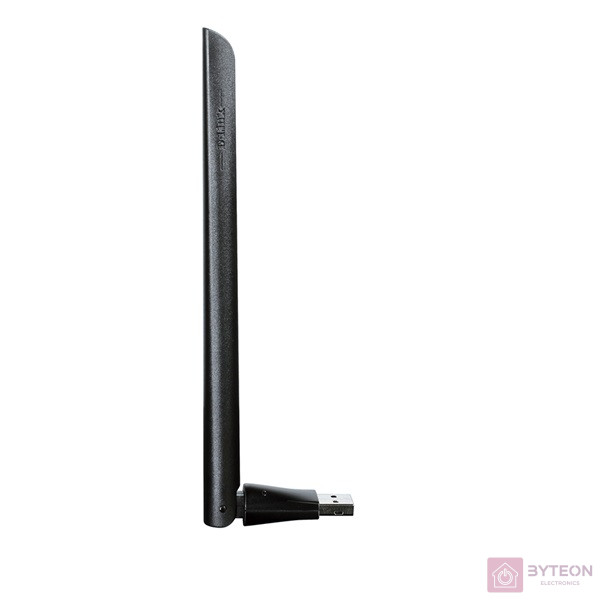

D-Link DWA-172 AC600 Dual-Band Wireless High Gain USB Adapter

Technical Specifications

General Specifications

Interfaces

• USB 2.0 connector


• Status LED


• WPS button

Security

• Wi-Fi Protected Access (WPA & WPA2)


• Wi-Fi Protected Setup - PIN & PBC

Standards

• IEEE 802.11ac


• IEEE 802.11n


• IEEE 802.11g


• IEEE 802.11b


• IEEE 802.11a

Antenna Type

• High power 3dBi external antenna

Requirements

Operating System

• Windows 8/7/Vista/XP SP3

Compatible Browsers

• Internet Explorer 7 or later


• Mozilla Firefox 3.0 or later

Interface

• Available USB port2

Physical

Dimensions

• 193 x 15.7 x 15 mm (7.6 x 0.62 x 0.59 inches)

Weight

• 23.2 grams (0.82 ounces)

Power

• Operating Voltage: 5.0 V DC ±10%


• Power Consumption: 300 mA

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)


• Storage: -20 to 75 °C (-4 to 167 °F)

Humidity

• 10% to 90% (non-condensing)


• 5% to 95% (non-condensing)

Certifications

• FCC Class B


• IC


• CE


• C-Tick


• Wi-Fi Certified


• Wi-Fi Protected Setup
