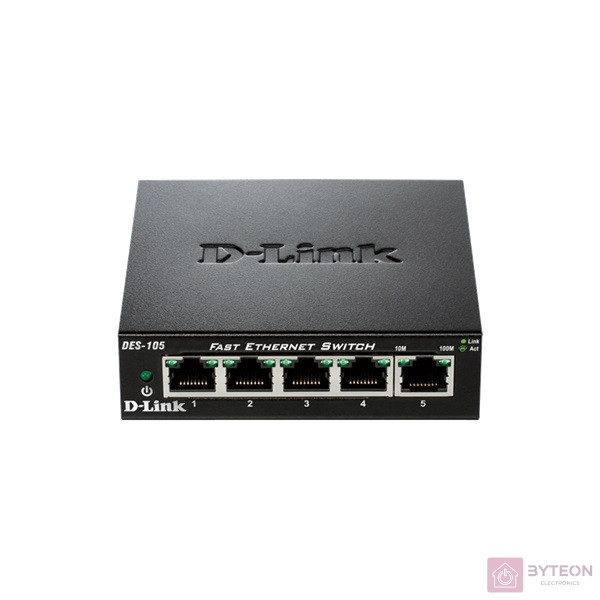

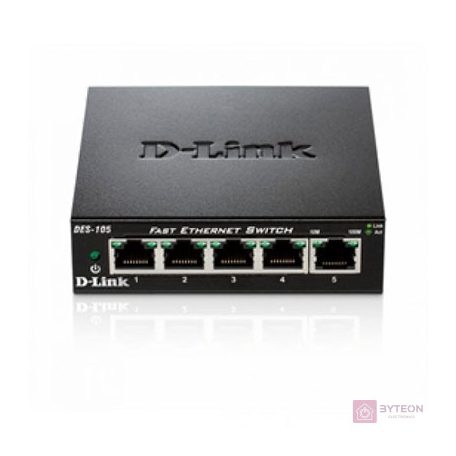

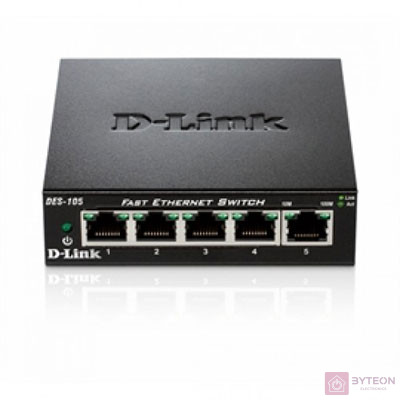

D-Link DES-105/DES-108 Specifications |
|---|
Switching Capacity |
1.0 Gbps |
1.6 Gbps |
Standards |
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.1p QoS
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
|
Protocol |
CSMA/CD |
Data Transfer Rates |
- Ethernet:
- 10 Mbps (half duplex)
- 20 Mbps (full duplex)
- Fast Ethernet:
- 100 Mbps (half duplex)
- 200 Mbps (full duplex)
|
Network Cables |
- 10BASE-T:
- UTP CAT 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
- 100BASE-TX:
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
|
Media Interface Exchange |
Auto MDI/MDIX adjustment for all ports |
LED Indicators |
- Per port: Link/Activity
- Per device: Power
|
Transmission Method |
Store-and-forward |
MAC Address Table |
2K |
1K |
MAC Address Learning |
Automatic update |
Packet Filtering/Forwarding Rates |
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
|
RAM Buffer |
- 384 KBytes per device
- 768 KBytes per device
|
Jumbo Frames |
2048 Bytes |
QoS |
4 Queues, strict mode |
DC Input |
External 5 V/0.55 A Level “V” Power Adapter |
Power Consumption |
- Power On (Standby):
- DC input: 0.15 watts
- AC input: 0.25 watts
- Maximum:
- DC input: 0.85 watts
- AC input: 2.17 watts
|
- Power On (Standby):
- DC input: 0.25 watts
- AC input: 0.3 watts
- Maximum:
- DC input: 1.3 watts
- AC input: 2.4 watts
|
Heat Dissipation |
- Power On (Standby) AC input: 0.853 BTU/h
- Maximum DC input: 2.9002 BTU/h
|
- Power On (Standby) AC input: 1.0236 BTU/h
- Maximum DC input: 4.4356 BTU/h
|
MTBF |
1,398,635 hours |
863,878 hours |
Operating Temperature |
32 to 104 °F (0 to 40 °C) |
Storage Temperature |
14 to 158 °F (-10 to 70 °C) |
Operating Humidity |
10% to 90% RH non-condensing |
Storage Humidity |
5% to 90% RH non-condensing |
Dimensions |
3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm) |
6.3 x 4 x 1.1 inches (162 x 102 x 28 mm) |
Weight |
0.57 lbs (256 grams) |
0.90 lbs (412 grams) |
Certifications |
- FCC Class B
- ICES-003 Class B
- CE Class B
- C-Tick Class B
- VCCI Class B
- cUL
- CB
|
