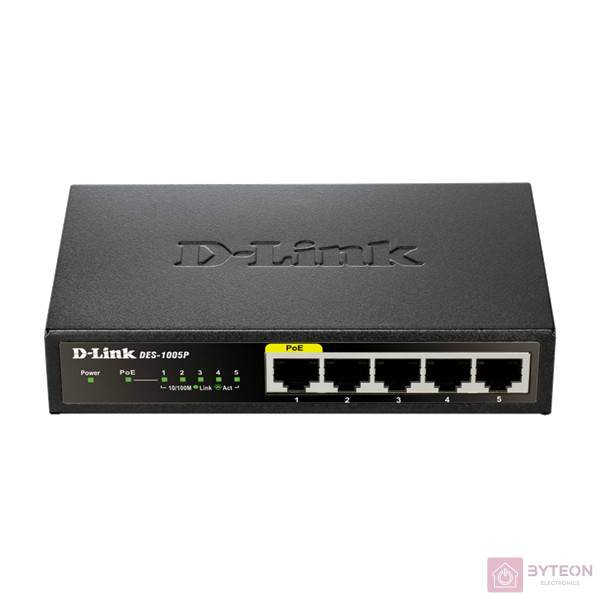

D-Link DES-1005P/E 5port 10/100

Csomagajánlatok

• Részletek
• Adatok

Részletek

Technical Specifications:

D-Link DES-1005P Specifications
General
Number of Ports	Five 10/100 Mbps Ports including one PoE enabled
Switching Capacity	1Gbps
Standards	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control IEEE 802.1p QoS
PoE Features	Supports IEEE 802.3af Supplies up to 15.4 watts of power to PD
Data Transfer Rates	Ethernet: 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex) 200 Mbps (full duplex)
Network Cables	10BASE-T: UTP CAT 3, 4, 5/5e (100 m max) EIA/TIA-586 100-ohm STP (100 m max) 100BASE-TX UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange	Auto MDI/MDIX adjustment for all ports
LED Indicators	Per port: Link/Activity/Speed/PoE Status Per device: Power/PoE Max
Transmission Method	Store-and-forward
MAC Address Table	2k Entries per device
MAC Address Learning	Automatic update
Packet Filtering/Forwarding Rates	Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port
RAM Buffer	64 KBytes per device
D-Link Green	IEEE 802.3az Energy Efficient Ethernet (EEE) Link status detection power saving Cable length detection power saving
Physical
Power Inputs	Switching 48 V/0.5 A Level V power adapter
Power Consumption	Power On (Standby): DC input: 0.9 watt AC input: 1.8 watts Maximum (PoE Off): DC input: 2.05 watts AC input: 2.7 watts Maximum (PoE On): DC input: 17.29 watts AC input: 20.2 watts
MTBF	324,616 hours
Operating Temperature	32 to 104 °F (0 to 40 °C)
Storage Temperature	104 to 158 °F (-40 to 70 °C)
Storage Humidity	0% to 95% RH non-condensing
Dimensions	5.5 x 3.3 x 1.1 inches (140 x 85 x 28 mm)
Certifications	FCC Class B ICES-003 Class B cUL

Adatok

Garancia (jogi személy):

24

Tömeg:

950 g/db
