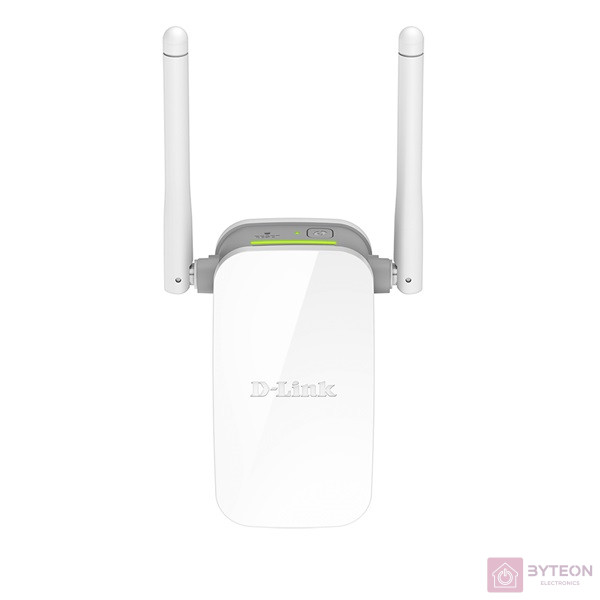

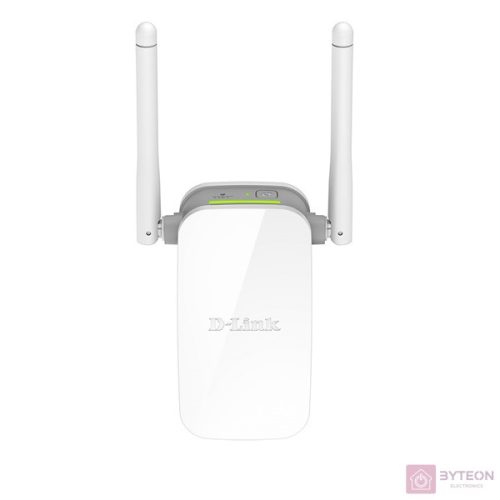

D-Link DAP-1325/E N300

Technical Specifications:

General

Device Interfaces

• 802.11 n/g wireless LAN


• 10/100 Fast Ethernet Port


• Reset Button


• WPS Button

LEDs

• Status/WPS


• 3 Segment Wi-Fi Signal Strength Indicator

Standards

• IEEE 802.11n


• IEEE 802.11g


• IEEE 802.3u

Antennas

• Two external antennas

Mimimum System Requirements

• Windows® 10, Windows® 8.1, Windows® 8, Windows® 7 , or Mac OS® X (v10.7)


• Internet Explorer® 11, Mozilla® Firefox® v28, Google Chrome v33, or Safari v7

Functionality

Wireless Security

• Wi-Fi Protected Access (WPA/WPA2)


• WPS (PBC)

Advanced Features

• D-Link One-Touch Extender Setup

Device Management

• Supports QRS Mobile app for iPhone, iPad, Pod touch, and Android mobile devices


• Web UI

Physical Dimensions

• 3.85 x 2.00 x 1.91 inches

Weight

• 3.42 oz

Power

• Input: 100 to 240 V AC, 50/60 Hz

Temperature

• Operating: 32 to 104 °F


• Storage: -4 to 158 °F

Humidity

• Operating: 10% to 90% non-condensing


• Storage: 5% to 95% non-condensing

Certifications

• FCC


• Wi-Fi Certified


• IC


• UL

Package Contents

What’s Inside

• N300 Wi-Fi Range Extender


• Quick Installation Guide


• Wi-Fi Configuration Card
