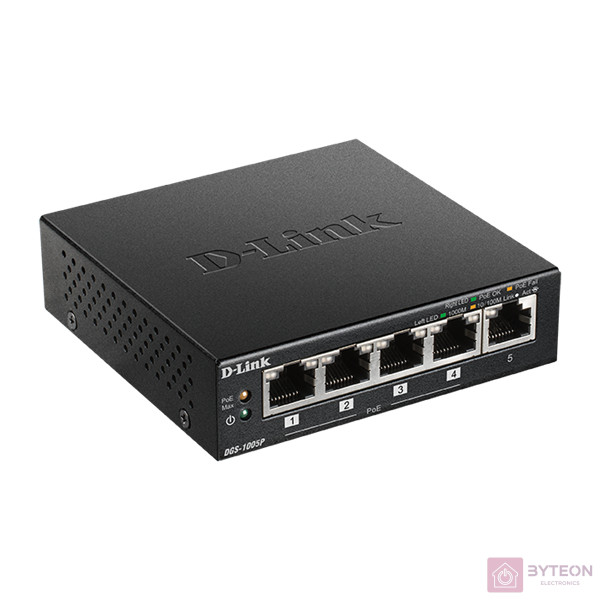

D-Link 5-Port 10/100/1000Mbps Gigabit PoE+ Switch, 60W power budget

• 5x Gigabit Ethernet ports (4x PoE+ ports)


• PoE+, 60W power budget


• 10 Gbps switching fabric capacity


• Plug & Play simplicity for easy installation

General

Hardware version = A1

Size

• Desktop

Interfaces

• 5 10/100/1000BASE-T ports

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

• IEEE 802.3ab 1000BASE-T Gigabit Ethernet

• IEEE 802.3x flow control

• IEEE 802.1p QoS

• ANSI/IEEE 802.3 NWay auto-negotiation

Media Interface Exchange

• Auto MDI/MDI-X adjustment on all ports

Performance

Switching Fabric

• 10 Gbps

Transmission Method

• Store-and-forward

Data Transfer Rates

• Gigabit Ethernet

     • 2000 Mbps (full-duplex)

• Fast Ethernet

     • 100 Mbps (half-duplex)

     • 200 Mbps (full-duplex)

• Ethernet

     • 10 Mbps (half-duplex)

     • 20 Mbps (full-duplex)

Packet Filtering / Forwarding Rates

• 7.44 Mpps

MAC Address Table

• 2K entries per device

RAM Buffer

• 64 KB per device

PoE

PoE Standards

• IEEE 802.3af

• IEEE 802.3at

PoE-Capable Ports

• Ports 1 to 4

Power Budget

• 60 W (30 W max. per PoE port)

LEDs

• Power

• Power / PoE Max (per unit)

• Power / Status (per port)

• Activity / Link and Speed (per port)

Physical

Weight

• 0.26 kg (9.17 oz)

Dimensions

• 100 x 98 x 28 mm (3.94 x 3.86 x 1.10 in)

DC Input

• External 53.5 V / 1.2 A power adapter

Power Consumption

• 64.5 W maximum (PoE on)

• 3.08 W maximum (PoE off)

• 0.54 W (standby)

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)

• Storage: -10 to 70 °C (-40 to 158 °F)

Humidity

• Operating: 0% to 95% RH non-condensing

• Storage: 0% to 95% RH non-condensing

Certifications

Safety

• cUL

• CB

• LVD

• BSMI

EMI/EMC

• CE

• BSMI

• FCC

• VCCI

• RCM

Ordering Information

DGS-1005P 5-Port Gigabit Switch with 4 PoE Ports
