? Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
? 24 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
? Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
? Store-and-Forward switching method
? Supports 16K MAC address auto-learning and auto-agin
Product Name |

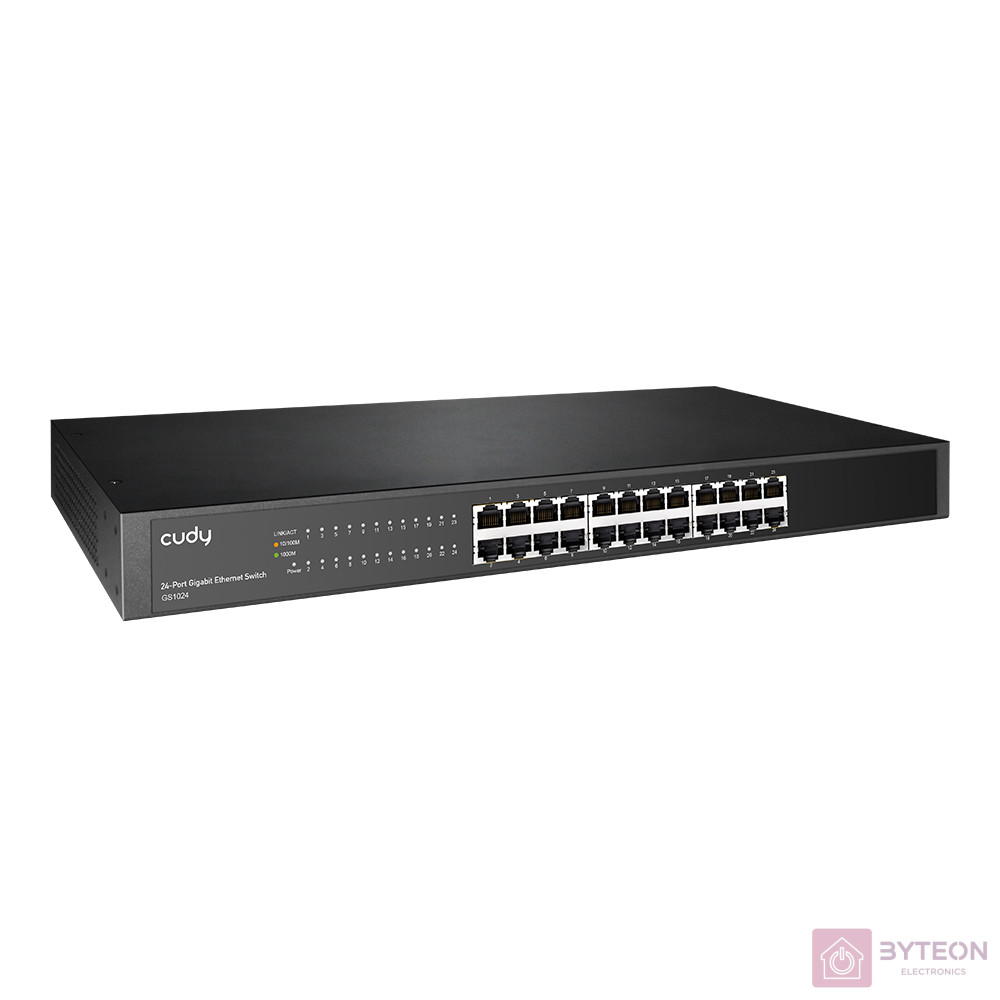

24-Port Gigabit Ethernet Switch |
Product Model |
GS1024 |
Chipset |
RTL8382L+2*RTL8218B+2*RTL8231 |
Standards |
IEEE 802.3?IEEE 802.3u?IEEE802.3ab?IEEE802.3x?IEEE802.3az |
Number of Ports |
24 x 10/100/1000Mbps Auto-Negotiation ports |
Network Media (Cable) |
10Base-T: UTP category 3,4,5 cable (maximum 100m) |
100Base-Tx: UTP category 5,5e cable (maximum 100m) |
1000Base-T:UTP category 5e,6 cable (maximum 100m) |
Transfer Method |
Store-and-Forward |
MAC Address Table |
8K |
Switching Capacity |
48Gbps |
Packet Forwarding Rate |
35.7Mbps |
Packet Buffer |
4.1 Mbit |
Jumbo Frame |
9K Bytes |
LED indicators |
Per-Port |
10M/100M Link/ACT:Orange |
1000M Link/ACT:Green |
Per Device |
Power :Green |
Power Supply |
AC 100-240V/50-60Hz 12//1.5A internal power |
Power Consumption |
Maximum: 15W(220V/50Hz) |
Dimensions ( W x D x H ) |
440*140*44mm |
Environment |
Operating Temperature: 0? ~ 40? |
Storage Temperature: -40? ~70? |
Operating Humidity: 10%~90% non-condensing |
Storage humidity: 5%~90% non-condensing |
