? Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
? 8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
? Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
? Store-and-Forward switching method
? Supports 16K MAC address auto-learning & auto-aging

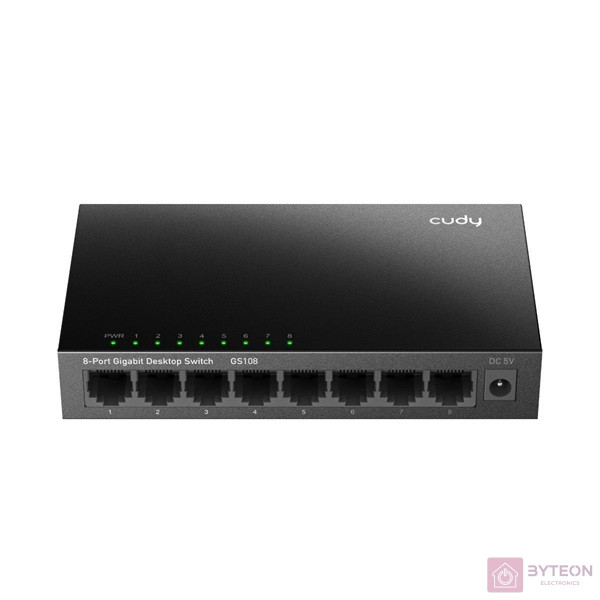

Model |
GS108 |
Standard configurati |
8 10/100/1000M RJ-45 adaptive ports |
Switching Capacity |
16Gbps |
Throughput |
11.9Mpps |
Packet Buffer |
2.5M |
MAC Address |
1K |
Jumbo Frame |
2K |
Transfer Mode |
Store and forward |
MTBF |
100000 hour |
Network protocol |
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control) |
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
Network Medium |
10Base-T : Cat3,4,5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or aboveUTP(≤100m) |
Working Environment |
Working Temperature:-10~50°C
Storage Temperature:-40~70°C
Working Humidity :10%~90%,non-condensing
Storage Temperature:5%~90%,non-condensing
Working Height:Maximum10,000 feet
Storage heigh:Maximum 10,000 feet |
LED Indicators |
PWR(Power indicator)?Link(Network Link)?LOOP(Loop alarm) |
DIP Switch |
VLAN:Port Isolation, 1-6 ports are isolated each other, all communicate with uplink port 7/8;
Default:Default mode, Support loop alarm;
Extend:Monitor Mode, 1-6 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as uplink port |
Structure Size |
Product Size:137*77*25mm
Package Size:175*120*63mm
Product Net-Weight:0.3kg
Product Gross-Weight:0.5kg
|
Packing Info |
MEAS:505*320*400mm
Packing Qty:40 unit
Packing weight:21KG |
Power Voltage |
Power Input Voltage :AC 100-240 V
Switch Input Voltage::DC 5V |
