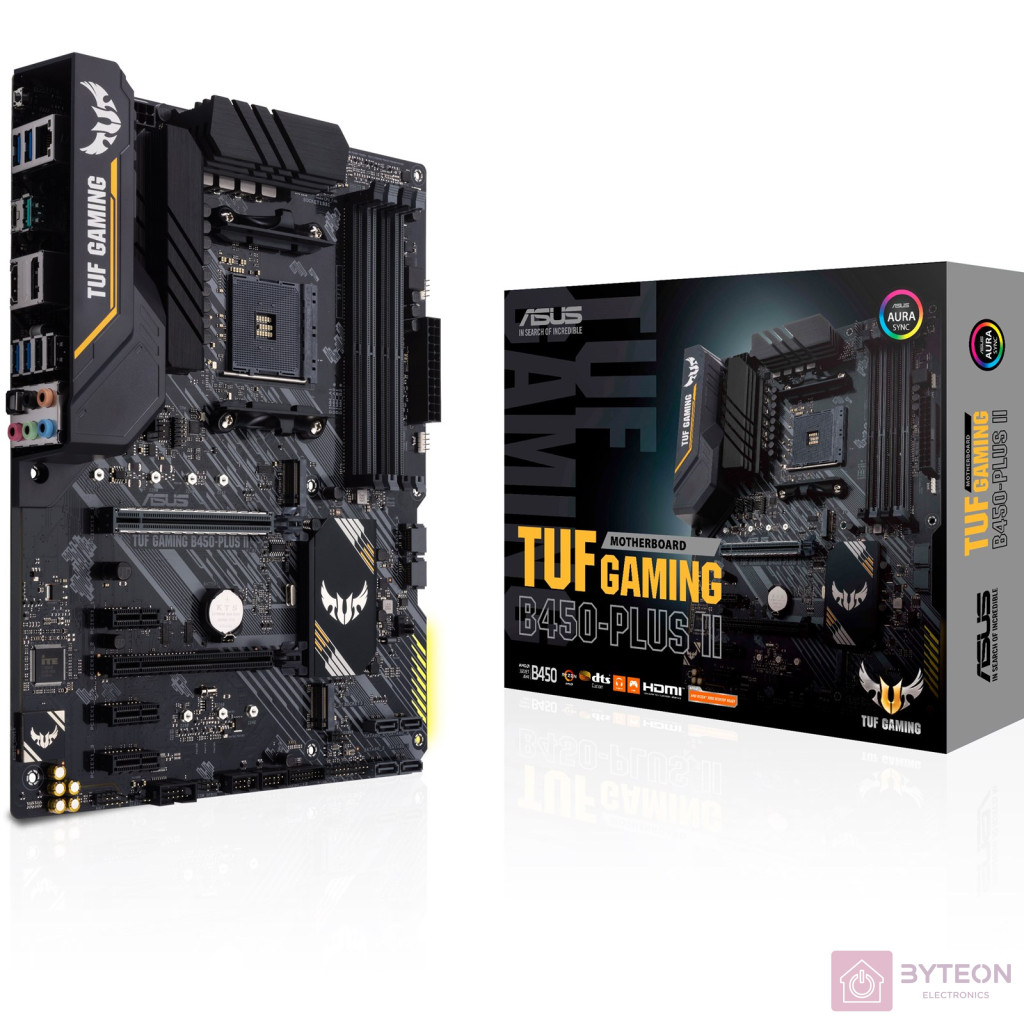

Asus TUF GAMING B450-PLUS II (AM4)

Csomagajánlatok

• Részletek
• Adatok

Részletek

CPU

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors

* Refer to www.asus.com for CPU support list

Chipset

AMD B450

Memory

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* The maximum memory frequency supported varies by processor.

Graphic

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

1  x DisplayPort 1.2

1  x HDMI 2.0b

*Graphics specifications may vary between CPU types.

Multi-GPU Support

Supports AMD CrossFireX™ Technology

Expansion Slots

3rd/2nd/1st Gen AMD Ryzen™ Processors

1 x PCIe 3.0/2.0 x16 (x16 mode)

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

1 x PCIe 3.0/2.0 x16 (x8 mode)

AMD Athlon™ with Radeon™ Vega Graphics Processors

1 x PCIe 3.0/2.0 x16 (x4 mode)

AMD B450 chipset

1 x PCIe 2.0 x16 (max at x4 mode) *¹

3 x PCIe 2.0 x1

Storage

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*²

AMD Athlon™ with Radeon™ Vega Graphics Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*²

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :

2 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

AMD B450 chipset :

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)*³

4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

LAN

Realtek® L8200A

TUF LANGuard

Audio

Realtek® ALC S1200A 8-Channel High Definition Audio CODEC *⁴

Audio Feature :

- Exclusive DTS Custom for GAMING Headsets.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

USB Ports

Rear USB Port ( Total 8  )

2 x USB 3.2 Gen 2 port(s)(1 x USB Type-C^®)(1 x Type-A +0 x )

4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6  )

2 x USB 3.2 Gen 1 port(s)

4 x USB 2.0 port(s)

Special Features

ASUS TUF PROTECTION

- ASUS SafeSlot: Protect your graphics card Investment

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: Precision control for stable power

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

AURA :

- Aura Lighting Control

- Aura RGB Strip Headers

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

- Turbo LAN

- PC Cleaner

- Armoury Crate

- BIOS FlashBack^™ Button

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution & MOS Heatsink

- ASUS Fan Xpert 4 Core

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS USB BIOS FlashBack^™

- ASUS UEFI BIOS EZ Mode

ASUS Q-Design :

- ASUS Q-Slot

- ASUS Q-DIMM

Armoury Crate

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- AI Noise-Canceling Microphone

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 4 core

- EZ update

- PC Cleaner

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS Special Features

ASUS TUF PROTECTION

- ASUS DIGI+ VRM

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- TUF LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

AURA Sync

- AURA RGB headers

Back I/O Ports

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 2 (1 x USB Type-C^®+1 x Type-A)

4 x USB 3.2 Gen 1 Type-A

2 x USB 2.0

5 x Audio jack(s)

1 x BIOS FlashBack^™ Button(s)

Internal I/O Ports

1 x CPU Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (3 x 4 -pin)

1 x AIO_PUMP connector (1 x 4 -pin)

2 x Aura RGB Strip Header

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)

1 x SPI TPM header

6 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x COM port header

Accessories

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x TUF GAMING Sticker

1 x TUF Certification card(s)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Windows® 7 64-bit *⁵

Form Factor

ATX Form Factor

12.0  inch x 9.6  inch ( 30.5  cm x 24.4  cm )

Note

*1 PCIE x16_2 will be unavailable when installing M.2 PCIE SSD in M.2_2 socket.

PCIe x16_2 will run x2 when installing devices in PCIe x1_1 or PCIe x1_2 slots.

PCIE x16_2 will run x4 when no devices installing in PCIE x1_1 and PCIE x1_2 slots.

*2 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.

*3 PCIe x16_2, PCIe x1_1, and PCIe x1_2 slots will be unavailable when installing M.2 PCIe SSD in M.2_2 socket.

*4 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

*5 Install an AMD Ryzen™ 2nd Generatione or Ryzen™ 1st Generation Processors to support Windows 7 64-bit operating system.

Adatok

Garancia (jogi személy):

36

Tömeg:

1,5 kg/db
