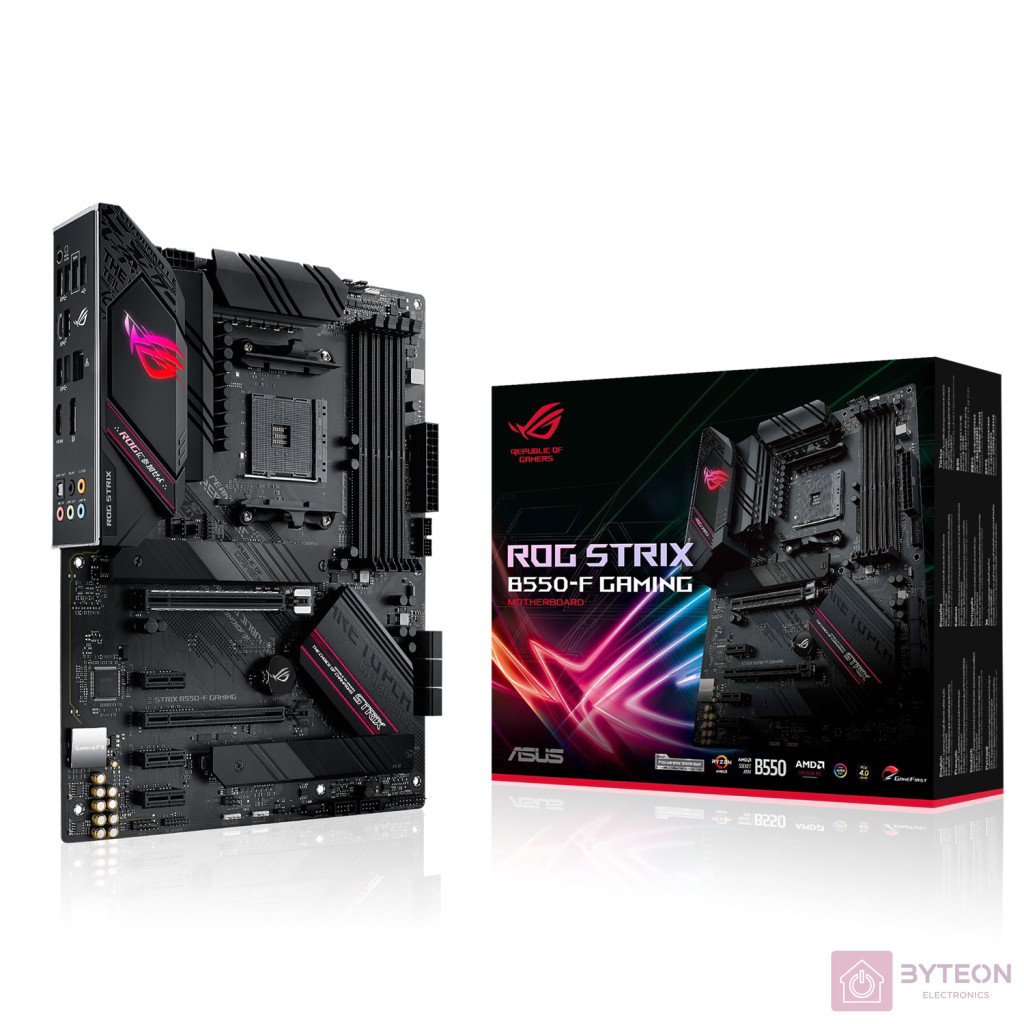

Asus ROG Strix B550-F Gaming (AM4)

Csomagajánlatok

• Részletek
• Adatok

Részletek

• CPU

  AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors

  * Refer to www.asus.com for CPU support list




• Chipset

  AMD B550




• Memory

  3rd Gen AMD Ryzen™ Processors

  4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

  Next Generation AMD Ryzen PRO Processors

  4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

  Dual Channel Memory Architecture

  OptiMem II

  ECC Memory (ECC mode) support varies by CPU.

  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).




• Graphic

  Integrated Graphics Processor

  1 x DisplayPort 1.2

  1 x HDMI 2.1(4K@60HZ)

  *Graphics specifications may vary between CPU types.




• Multi-GPU Support

  Supports AMD 2-Way CrossFireX Technology




• Expansion Slots

  3rd Gen AMD Ryzen™ Processors

  1 x PCIe 4.0 x16 (x16 mode)

  AMD B550 Chipset

  1 x PCIe 3.0 x16 (x4 mode) *

  3 x PCIe 3.0 x1




• Storage

  Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

  3rd Gen AMD Ryzen™ Processors :

  1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

  AMD B550 Chipset :

  1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*

  6 x SATA 6Gb/s port(s)

  Support Raid 0, 1, 10




• LAN

  Intel® I225-V 2.5Gb Ethernet

  ASUS LANGuard




• Audio

  ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

  - Dual OP Amplifiers

  - Impedance sense for front and rear headphone outputs

  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

  - Supports up to 32-Bit/192kHz playback *

  Audio Feature :

  - SupremeFX Shielding™ Technology

  - Gold-plated jacks

  - Optical S/PDIF in port(s) at back panel

  - Audio Shielding

  - Premium Japanese audio capacitors

  - Audio Cover

  * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.




• USB Ports

  Rear USB Port ( Total 8 )

  2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C^®)

  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

  2 x USB 2.0 port(s)

  Front USB Port ( Total 6 )

  2 x USB 3.2 Gen 1 port(s)

  4 x USB 2.0 port(s)




• Software Features

  ROG Exclusive Software

  - RAMCache III

  - ROG CPU-Z

  - GameFirst VI

  - Sonic Studio III + Sonic Studio Virtual Mixer

  - Sonic Radar III

  - DTS® Sound Unbound

  - Overwolf

  - Anti-virus software

  ASUS Exclusive Software Features

  Armoury Crate

  - Aura Creator

  - Aura Sync

  - AI Noise Cancelling Microphone

  AI Suite 3:

  - PPSU

  EPU

  DIGI+ VRM

  Fan Xpert 4

  TurboV EVO

  - EZ update

  WinRAR

  UEFI BIOS

  ASUS EZ DIY

  - ASUS CrashFree BIOS 3

  - ASUS EZ Flash 3

  - ASUS UEFI BIOS EZ Mode




• ASUS Special Features

  Aura Sync

  - Standard RGB header(s)

  - Addressable Gen 2 RGB header(s)

  ASUS Q-Design

  - ASUS Q-DIMM

  - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)

  - ASUS Q-Slot

  ASUS Thermal Solution

  - Aluminum M.2 heatsink

  ASUS EZ DIY

  -BIOS FlashBack™ button

  -BIOS FlashBack™ LED

  -Clear CMOS header

  -ProCool

  -Pre-mounted I/O shield

  - SafeSlot




• Back I/O Ports

  1 x Intel® I225-V 2.5Gb Ethernet

  1 x DisplayPort

  1 x HDMI

  2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C^®)

  4 x USB 3.2 Gen 1

  2 x USB 2.0

  1 x Optical S/PDIF out

  1 x BIOS FlashBack^™ Button(s)

  5 x Gold-plated audio jacks

  ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)




• Internal I/O Ports

  1 x CPU Fan connector(s)

  1 x CPU OPT Fan connector(s)

  3 x Chassis Fan connector(s)

  1 x AIO_PUMP connector

  1 x AAFP connector

  2 x Aura RGB Strip Header(s)

  1 x Addressable Gen 2 header(s)

  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

  1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

  1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

  6 x SATA 6Gb/s connector(s)

  1 x Thunderbolt header(s)

  1 x 24-pin EATX Power connector(s)

  1 x 8-pin ATX 12V Power connector(s)

  1 x 4-pin ATX 12V Power connector(s)

  1 x System panel(s)

  1 x Thermal sensor connector(s)

  1 x Clear CMOS jumper(s)




• Accessories

  User's manual

  4 x SATA 6Gb/s cable(s)

  1 x Supporting DVD

  1 x ROG Strix stickers

  1 x Cable ties pack(s)

  1 x Extension cable for Addressable LED

  1 x ROG Thank you card

  1 x M.2 SSD screw package(s)

  1 x M.2 Rubber Package(s)




• BIOS

  256 Mb Flash ROM, UEFI AMI BIOS




• Manageability

  WOL by PME, PXE




• Operating System

  Windows® 10 64-bit




• Form Factor

  ATX Form Factor

  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )




• Note

  * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3

  * When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.



Adatok

Garancia (jogi személy):

36

Tömeg:

2 kg/db
