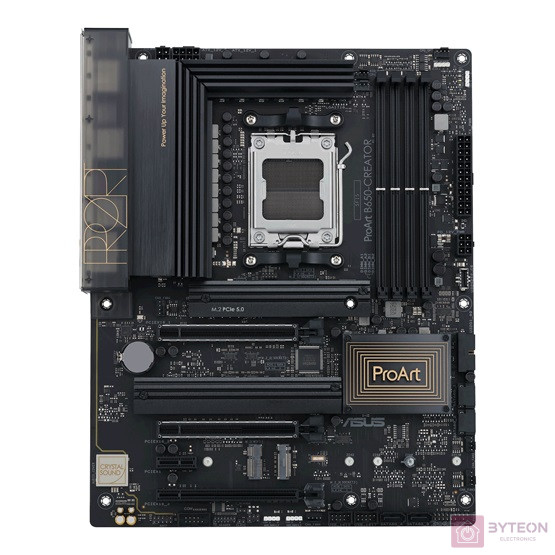

Asus ProArt B650-CREATOR Alaplap

Model

ProArt B650-CREATOR

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset

AMD B650

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.

Graphics

1 x HDMI^® port**

1 x USB Type-C^® port supports DisplayPort output***

* Graphics specifications may vary between CPU types.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors*

2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)

AMD B650 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)**

1 x PCIe 4.0 x1 slot

* Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**

4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.

Ethernet

1 x Realtek 2.5Gb Ethernet

1 x Realtek 1Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

M.2 slot only (Key E, PCIe)*

*Wi-Fi module is sold separately.

USB

Rear USB (Total 7 ports)

1 x USB 3.2 Gen 2 port (1 x USB Type-C^®, shared with DisplayPort graphic output )

4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^® with up to 60W PD/QC4+)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Power pre-regulator reduces power input noise to ensure consistent performance

- Rear optical S/PDIF out port

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

Back Panel I/O Ports

1 x USB 3.2 Gen 2 port (1 x USB Type-C^®, shared with DisplayPort graphic output )

4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort (Input only)

1 x HDMI^® port

1 x Realtek 2.5Gb Ethernet

1 x Realtek 1Gb Ethernet

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

Internal I/O Connectors

I/O ConnectorsFan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

1 x 6-pin PCIe Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x 20-5 pin System Panel header

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4^®) header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- LANGuard

- Overvoltage Protection

- Safeslot

- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsinks

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- Aura RGB header

- Addressable Gen 2 headers

Bespoke Motherboard Design & Business Focused Features

- 24/7 Reliability

- Overcurrent Protection

Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support

- Support: up to 60W charging*

- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS

* To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4

- Power Saving

- Two-Way AI Noise Cancellation

AI Suite 3

- TurboV EVO

- DIGI+ VRM

- PC Cleaner

ASUS CPU-Z

IT Management software supported

- ASUS Control Center Express(ACCE)

CreationFirst

Norton Anti-virus software (Free Trial version)

ProArt Creator Hub

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

1 x DisplayPort cable

2 x SATA 6Gb/s cables

Miscellaneous

1 x Q-connector

1 x Rubber Packages for M.2

1 x Screw packages for M.2 SSD

1 x Screw package for M.2 Key E

1 x ProArt ruler

Documentation

1 x ACC Express Activation Key Card

1 x User guide

Operating System

Windows^® 11 64-bit, Windows^® 10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
