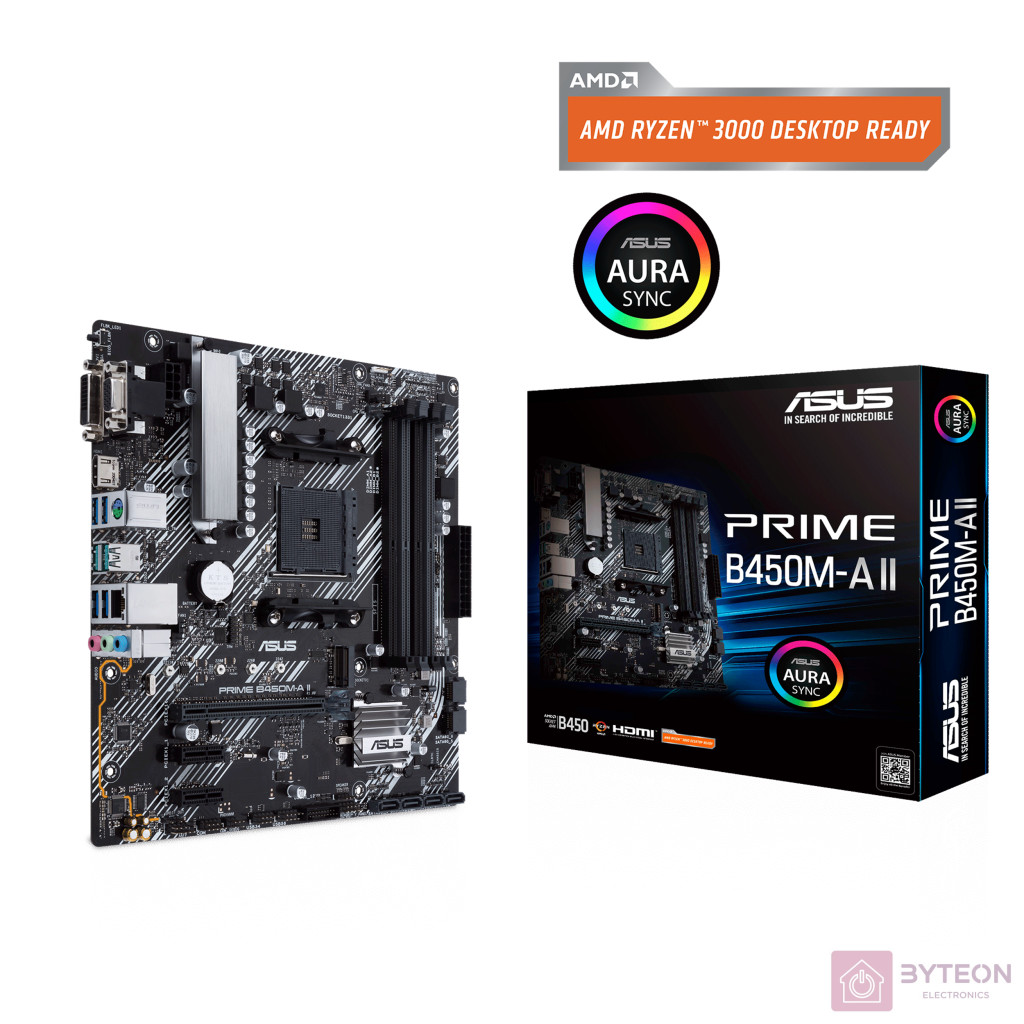

Asus Prime B450M-A II (AM4)

Csomagajánlatok

• Részletek
• Adatok

Részletek

• CPU

  AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors *

  * Refer to www.asus.com for CPU support list




• Chipset

  AMD B450




• Memory

  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

  4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *

  Dual Channel Memory Architecture

  ECC Memory (ECC mode) support varies by CPU.

  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

  * The maximum memory frequency supported varies by processor.




• Graphic

  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *

  1 x D-Sub

  1 x DVI-D

  1 x HDMI 2.0b

  *Graphics specifications may vary between CPU types.




• Expansion Slots

  3rd/2nd/1st Gen AMD Ryzen™ Processors

  1 x PCIe 3.0 x16 (x16 mode)

  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

  1 x PCIe 3.0 x16 (x8 mode)

  AMD Athlon™ with Radeon™ Vega Graphics Processors

  1 x PCIe 3.0 x16 (x4 mode)

  AMD B450 chipset

  2 x PCIe 2.0 x1




• Storage

  Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports

  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *¹

  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

  Athlon™ with Radeon™ Vega Graphics Processors : *¹

  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)

  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :

  2 x SATA 6Gb/s port(s),

  Support Raid 0, 1, 10

  AMD B450 chipset :

  4 x SATA 6Gb/s port(s),

  Support Raid 0, 1, 10




• LAN

  Realtek® RTL8111H

  ASUS LANGuard




• Audio

  Realtek 7.1-Channel High Definition Audio CODEC *

  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

  Audio Feature :

  - LED-illuminated design

  - Audio Shielding

  - Dedicated audio PCB layers

  - Premium Japanese audio capacitors

  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.




• USB Ports

  Rear USB Port ( Total 6 )

  2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)

  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

  Front USB Port ( Total 6 )

  2 x USB 3.2 Gen 1 port(s)

  4 x USB 2.0 port(s)




• Software Features

  ASUS Exclusive Software

  Armoury Crate

  - AURA Creator

  - AURA Sync

  AI Suite 3

  - Performance and Power Saving Utility

  TurboV EVO

  EPU

  DIGI+ VRM

  Fan Xpert 2+

  PC Cleaner

  - EZ update

  - System Information

  ASUS CPU-Z

  AI Charger

  ASUS EZ Installer

  DAEMON Tools

  Norton Anti-virus software (Free Trial for 60 days)

  WinRAR

  UEFI BIOS

  ASUS EZ DIY

  - ASUS CrashFree BIOS 3

  - ASUS EZ Flash 3

  - ASUS UEFI BIOS EZ Mode




• ASUS Special Features

  ASUS 5X PROTECTION III

  - ASUS DIGI+ VRM

  - ASUS LANGuard

  - ASUS Overvoltage Protection

  - ASUS SafeSlot Core

  - ASUS Stainless-Steel Back I/O

  ASUS Q-Design

  - ASUS Q-DIMM

  - ASUS Q-Slot

  ASUS Thermal Solution

  - Aluminum heatsink design

  ASUS EZ DIY

  - BIOS FlashBack™ button

  - BIOS FlashBack™ LED

  AURA Sync

  - AURA RGB header

  ASUS Lighting Control




• Back I/O Ports

  1 x PS/2 keyboard/mouse combo port(s)

  1 x DVI-D

  1 x D-Sub

  1 x HDMI

  1 x LAN (RJ45) port(s)

  2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)

  4 x USB 3.2 Gen 1 (blue) Type-A

  3 x Audio jack(s)

  1 x BIOS FlashBack^™ Button(s)




• Internal I/O Ports

  1 x CPU Fan connector(s) (1 x 4 -pin)

  2 x Chassis Fan connector(s) (2 x 4 -pin)

  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)

  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

  1 x SPI TPM header

  1 x COM port(s) connector(s)

  6 x SATA 6Gb/s connector(s)

  1 x S/PDIF out header(s)

  1 x 24-pin EATX Power connector(s)

  1 x 8-pin ATX 12V Power connector(s)

  1 x Front panel audio connector(s) (AAFP)

  1 x System panel(s)

  1 x Clear CMOS jumper(s)

  1 x COM port header

  1 x Speaker connector

  1 x RGB Header




• Accessories

  User's manual

  I/O Shield

  2 x SATA 6Gb/s cable(s)

  1 x M.2 Screw Package

  1 x Supporting DVD




• BIOS

  256 Mb Flash ROM, UEFI AMI BIOS




• Operating System

  Windows® 10 64-bit

  Windows® 7 64-bit *²




• Form Factor

  mATX Form Factor

  9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )




• Note

  1*The M.2 slot shares bandwidth with the SATA6G_5/6 ports, and therefore the SATA6G_5/6 ports cannot be used when an M.2 device is installed.

  2*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.



Adatok

Garancia (jogi személy):

24

Tömeg:

1,2 kg/db
