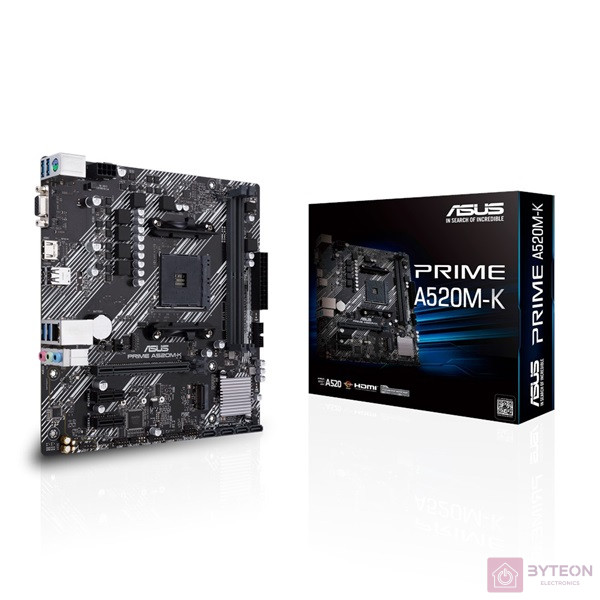

Asus Prime A520M-K (AM4)

Csomagajánlatok

• Részletek
• Adatok

Részletek

• CPU

  Build in AMD AM4 Socket Processors *

  * Refer to www.asus.com for CPU support list




• Chipset

  AMD A520




• Memory

  2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

  Dual Channel Memory Architecture

  ECC Memory (ECC mode) support varies by CPU.

  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

  * The maximum memory frequency supported varies by processor.




• Graphic

  1 x D-Sub

  1 x HDMI 2.1(4K@60HZ)




• Expansion Slots

  3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors

  1 x PCIe 3.0 x16 (x16 mode)

  AMD A520 Chipset

  2 x PCIe 3.0 x1




• Storage

  Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports

  3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :

  1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

  AMD A520 Chipset :

  4 x SATA 6Gb/s port(s),

  Support Raid 0, 1, 10




• LAN

  Realtek RTL8111H 1Gb Ethernet

  ASUS LANGuard




• Audio

  Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *

  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

  Audio Feature :

  - Audio Shielding

  - Dedicated audio PCB layers

  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.




• USB Ports

  Rear USB Port ( Total 6 )

  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

  2 x USB 2.0 port(s)(2 x Type-A)

  Front USB Port ( Total 6 )

  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

  4 x USB 2.0 port(s)(4 x Type-A)




• Software Features

  ASUS Exclusive Software

  Armoury Crate

  AI Suite 3

  - Performance and Power Saving Utility

  TurboV EVO

  EPU

  Digi+ VRM

  Fan Xpert

  - EZ update

  ASUS CPU-Z

  AI Charger

  DAEMON Tools

  Norton Anti-virus software (Free Trial for 60 days)

  WinRAR

  UEFI BIOS

  ASUS EZ DIY

  - ASUS CrashFree BIOS 3

  - ASUS EZ Flash 3

  - ASUS UEFI BIOS EZ Mode




• ASUS Special Features

  ASUS 5X PROTECTION III

  - ASUS DIGI+ VRM

  - ASUS LANGuard

  - ASUS Overvoltage Protection

  - ASUS SafeSlot Core

  - ASUS Stainless-Steel Back I/O

  ASUS Q-Design

  - ASUS Q-DIMM

  - ASUS Q-Slot

  ASUS Thermal Solution

  - Aluminum heatsink design




• Back I/O Ports

  1 x PS/2 keyboard/mouse combo port(s)

  1 x D-Sub

  1 x HDMI

  1 x LAN (RJ45) port(s)

  4 x USB 3.2 Gen 1 (blue) Type-A

  2 x USB 2.0

  3 x Audio jack(s)




• Internal I/O Ports

  1 x CPU Fan connector(s)

  1 x Chassis Fan connector(s)

  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

  1 x SPI TPM header

  4 x SATA 6Gb/s connector(s)

  1 x S/PDIF out header(s)

  1 x 24-pin EATX Power connector(s)

  1 x 8-pin EATX 12V Power connectors

  1 x Front panel audio connector(s) (AAFP)

  1 x Clear CMOS jumper(s)

  1 x System panel connector

  1 x COM port header

  1 x Speaker connector




• Accessories

  User's manual

  I/O Shield

  2 x SATA 6Gb/s cable(s)

  1 x Supporting DVD

  1 x M.2 SSD screw package(s)




• BIOS

  256 Mb Flash ROM, UEFI AMI BIOS




• Manageability

  WOL by PME, PXE




• Operating System

  Windows® 10 64-bit




• Form Factor

  mATX Form Factor

  8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )



Adatok

Garancia (jogi személy):

36

Tömeg:

1 kg/db
