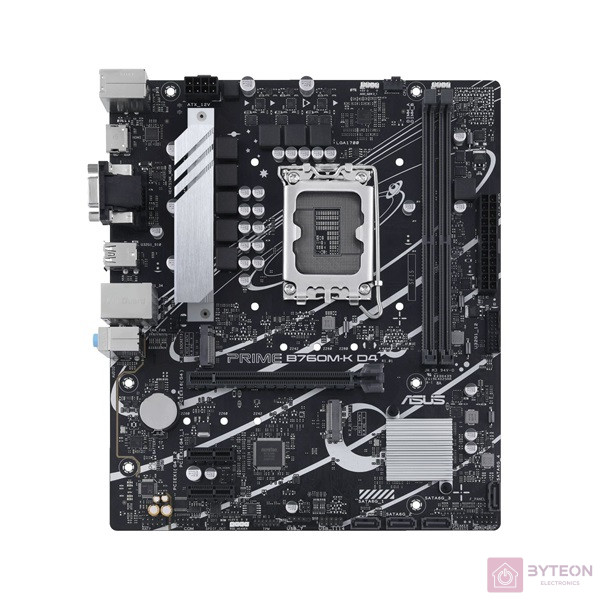

Asus PRIME B760M-K D4 alaplap

Csomagajánlatok

• Részletek
• Adatok

Részletek

CPU

Intel^® Socket LGA1700 for 13^th Gen Intel^® Core™ Processors & 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors*

Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^® B760 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4

5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel^® Extreme Memory Profile (XMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Graphics

1 x VGA port

1 x HDMI^® port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI^® 2.1.

Expansion Slots

Intel^® 13th & 12th Gen Processors

1 x PCIe 4.0 x16 slot

Intel^® B760 Chipset

2 x PCIe 4.0 x1 slots

Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel^® 13^th & 12^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet

USB

Rear USB (Total 6 ports)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 5 ports)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x VGA port

1 x HDMI^® port

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

Miscellaneous

2 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS EZ DIY

- ProCool

ASUS Thermal Solution

- VRM heatsink design

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Sync

- Fan Xpert

- Power Saving

AI Suite 3

- DIGI+ VRM

- PC Cleaner

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

2 x M.2 anchors

Documentation

1 x User guide

Operating System

Windows^® 11, Windows^® 10 64-bit

Form Factor

mATX Form Factor

9.6 inch x 8.3 inch (24.4cm x 21.1cm)

Adatok

Garancia (jogi személy):

36

Tömeg:

910 g/db
