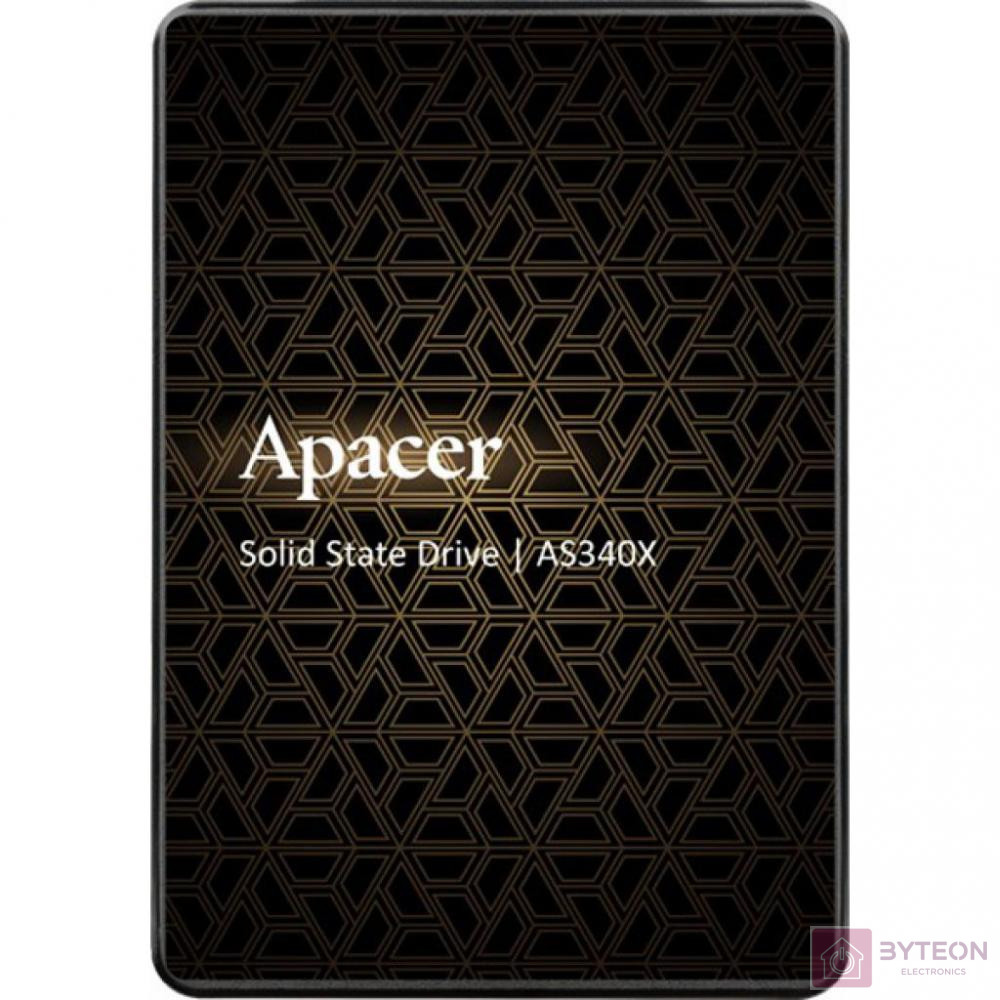

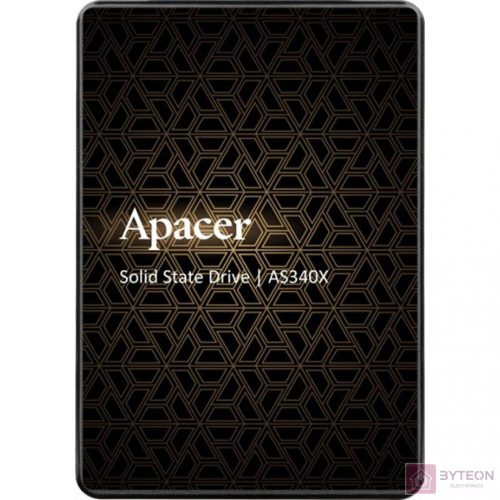

Specifications Overview:
? Compliance with SATA Revision 3.1
– SATA 6.0 Gbps interface
– Backward compatible with SATA 1.5 and
3.0 Gbps interfaces
? Capacity
– 120GB , 240GB ,480GB ,960GB
? Performance*
– Seq. Read / Write:
120GB : Up to 550 / 500 MB/s
240GB : Up to 550 / 520 MB/s
480GB : Up to 550 / 520 MB/s
960GB : Up to 550 / 510 MB/s
– (4K) Random Read / Write
120GB : Up to 38K / 75K IOPS
240GB : Up to 38K / 75K IOPS
480GB : Up to 87K / 80K IOPS
960GB : Up to 93K / 80K IOPS
? Flash Management
– Global Wear Leveling
– S.M.A.R.T.
– Power Failure Management
– TRIM
? NAND Flash Type: 3D NAND
? MTBF: 1,500,000 hours
? Endurance (in Terabytes Written: TBW)
– 120 GB: 70 TBW
– 240 GB: 140 TBW
– 480 GB: 280 TBW
– 960 GB: 560 TBW
? Temperature Range
– Operating:
Standard: 0°C to 70°C
– Storage: -40°C to 85°C
? Supply Voltage
– 5.0 V ± 5%
? Power Consumption*
– Active mode:
1,260 mW (120GB)
1,450 mW (240GB)
1,710 mW (480GB)
2,000 mW (960GB)
– Idle mode:
320 mW (120GB)
325 mW (240GB)
315 mW (480GB)
450 mW (960GB)
? Connector Type
– 7-pin SATA signal connector
– 15-pin SATA power connector
? Form Factor
– 2.5”
– Dimensions with 7mm enclosure:
100.00 x 69.85 x 6.90, unit: mm
? Shock & Vibration**
– Shock:1,500 G
– Vibration: 15 G
? SATA Power Management Modes
? RoHS Compliant
