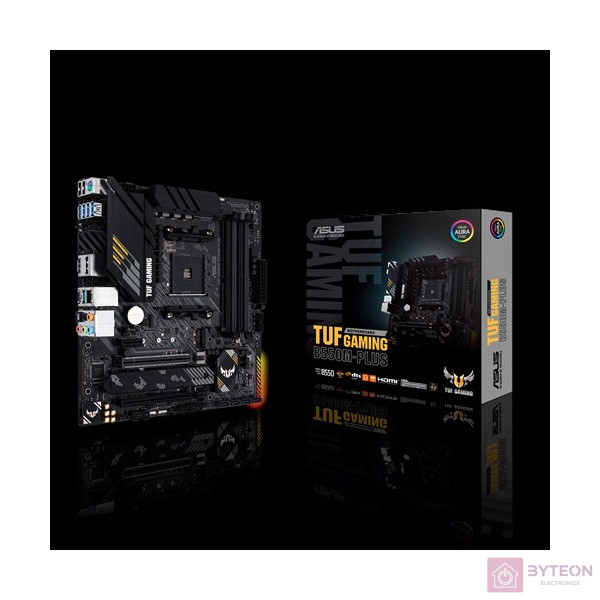

ASUS TUF Gaming B550M-Plus (AM4)

Csomagajánlatok

• Részletek
• Adatok

Részletek

• CPU

  Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *

  * Refer to www.asus.com for CPU support list




• Chipset

  AMD B550




• Memory

  3rd Gen AMD Ryzen™ Processors

  4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

  Next Generation AMD Ryzen PRO Processors

  4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

  Dual Channel Memory Architecture

  ECC Memory (ECC mode) support varies by CPU.

  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).




• Graphic

  1 x DisplayPort 1.2

  1 x HDMI 2.1(4K@60HZ)




• Multi-GPU Support

  Supports AMD 2-Way CrossFireX Technology




• Expansion Slots

  3rd Gen AMD Ryzen™ Processors

  1 x PCIe 4.0 x16 (x16 mode)

  AMD B550 Chipset

  1 x PCIe 3.0 x16 (x4 mode)

  1 x PCIe 3.0 x1

  * Support PCIe bifurcation for RAID on CPU function.




• Storage

  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

  3rd Gen AMD Ryzen™ Processors :

  1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

  AMD B550 Chipset :

  1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

  4 x SATA 6Gb/s port(s),

  Support Raid 0, 1, 10




• LAN

  Realtek RTL8125B 2.5Gb Ethernet

  TUF LANGuard




• Audio

  Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

  Audio Feature :

  - Exclusive DTS Custom for GAMING Headsets.

  - Optical S/PDIF out port(s) at back panel

  - Audio cover

  - Audio Shielding

  - Dedicated audio PCB layers

  - Premium Japanese audio capacitors




• USB Ports

  Rear USB Port ( Total 8 )

  2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C^®)

  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

  2 x USB 2.0 port(s)(2 x Type-A)

  Front USB Port ( Total 6 )

  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

  4 x USB 2.0 port(s)(4 x Type-A)




• Software Features

  ASUS Exclusive Software

  Armoury Crate

  - Aura Creator

  - Aura Sync

  - AI Noise Cancelling Microphone

  AI Suite 3

  - Performance And Power Saving Utility

  TurboV EVO

  EPU

  Digi+ VRM

  Fan Xpert 2+

  - EZ update

  TUF GAMING CPU-Z

  AI Charger

  ASUS Turbo LAN

  DAEMON Tools

  DTS Custom for GAMING Headsets

  Norton Anti-virus software (Free Trial for 60 days)

  WinRAR

  UEFI BIOS

  ASUS EZ DIY

  - ASUS CrashFree BIOS 3

  - ASUS EZ Flash 3

  - ASUS UEFI BIOS EZ Mode




• ASUS Special Features

  ASUS TUF PROTECTION

  - ASUS DIGI+ VRM (Digital power design with Dr. MOS)

  - ASUS Enhanced DRAM Overcurrent Protection

  - ASUS ESD Guards

  - TUF LANGuard

  - ASUS Overvoltage Protection

  - ASUS SafeSlot

  - ASUS Stainless-Steel Back I/O

  ASUS Q-Design

  - ASUS Q-DIMM

  - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

  - ASUS Q-Slot

  ASUS Thermal Solution

  - Aluminum M.2 heatsink

  ASUS EZ DIY

  - BIOS FlashBack™ button

  - BIOS FlashBack™ LED

  - Procool

  AURA Sync

  - Standard RGB headers

  - Addressable Gen 2 RGB header




• Back I/O Ports

  1 x PS/2 keyboard/mouse combo port(s)

  1 x DisplayPort

  1 x HDMI

  1 x LAN (2.5G) port(s)

  2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C^®)

  4 x USB 3.2 Gen 1 (blue) Type-A

  2 x USB 2.0

  1 x Optical S/PDIF out

  5 x Audio jack(s)

  1 x BIOS FlashBack^™ Button(s)




• Internal I/O Ports

  1 x CPU Fan connector(s)

  1 x CPU OPT Fan connector(s)

  2 x Chassis Fan connector(s)

  2 x Aura RGB Strip Headers

  1 x Addressable Gen 2 header(s)

  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

  1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)

  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

  1 x SPI TPM header

  4 x SATA 6Gb/s connector(s)

  1 x 24-pin EATX Power connector(s)

  1 x 8-pin EATX 12V Power connectors

  1 x Front panel audio connector(s) (AAFP)

  1 x Clear CMOS jumper(s)

  1 x System panel connector

  1 x COM port header

  1 x Speaker connector




• Accessories

  User's manual

  I/O Shield

  2 x SATA 6Gb/s cable(s)

  1 x Supporting DVD

  1 x TUF Gaming Sticker

  1 x TUF Certification card(s)

  1 x M.2 SSD screw package(s)

  1 x M.2 Rubber Package(s)




• BIOS

  256 Mb Flash ROM, UEFI AMI BIOS




• Manageability

  WOL by PXE




• Operating System

  Windows® 10 64-bit




• Form Factor

  mATX Form Factor

  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
